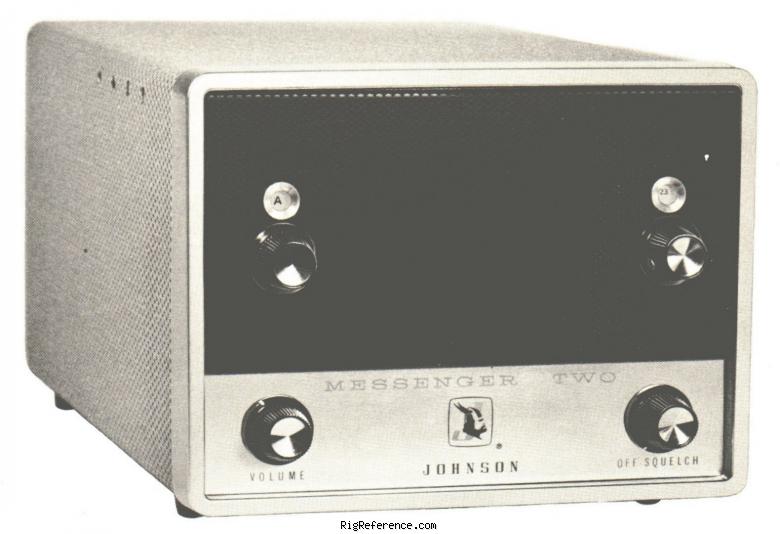

E.F. Johnson Messenger II

Desktop Transceiver

Specs Manuals (0) Reviews (0) Prices (2) Compare

The E.F. Johnson Messenger II is a transceiver covering 26.965-27.255 MHz for both receive and transmit. It has a channelized tuning step, crystal controlled single conversion superheterodyne receiver system with a 455 kHz IF frequency. The radio features 1 memory bank with 10 channels. RF output is 2.8 W and audio output is 3 W. Dimensions are 178 × 143 × 290 mm. It requires mains power and weighs 5.4 kg.

General characteristics

HAM bands: 11m (CB)
Frequency stability: ?
Tuning steps: Channelized
Memories: 10 channels in 1 bank(s)

Receiver

RX-range: 26.965-27.255 MHz
Modulations: AM
Sensitivity: 0.4 µV for 10 dB S/N
Selectivity: 7 kHz @ -6 dB
21 kHz @ -60 dB
Filters: ?
Receiver system: Crystal controlled single conversion superheterodyne
IF-frequencies: 455 kHz
Image rejection: ?
Audio output: 3 W

Transmitter

TX-range: 26.965-27.255 MHz
Modulations: AM
RF-output: 2.8 W

Connections

Antenna: -
Impedance: 50Ω
Other: -

Electrical

Power requirements: Mains
Current drain RX: ?
TX: ?

Physical

Dimensions (w×h×d): 143 × 178 × 290 mm (5.63 × 7.01 × 11.42 in)
Weight: 5.40 kg (11.9 lbs)
Form factor: Base Station
Manufactured: Between 195x and 196x in USA

Other features

Usage: Citizen Band (27Mc)
Features + options: -
Accessories: -
RigReference ID: 5585
MPN: E.F.-JOHNSON-MESSENGER-II

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: No documents available for this particular model.

: Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used E.F. Johnson Messenger II. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the E.F. Johnson Messenger II in Good condition is around:

USD 10 ~ USD 45

Price History Chart

These estimates are based on the following prices:

Year	Historic price	Condition	Submitted by
2020	USD 15.00	Used / Fair	Ken Myers
2017	USD 10.00	Used / Good	Necromonster
