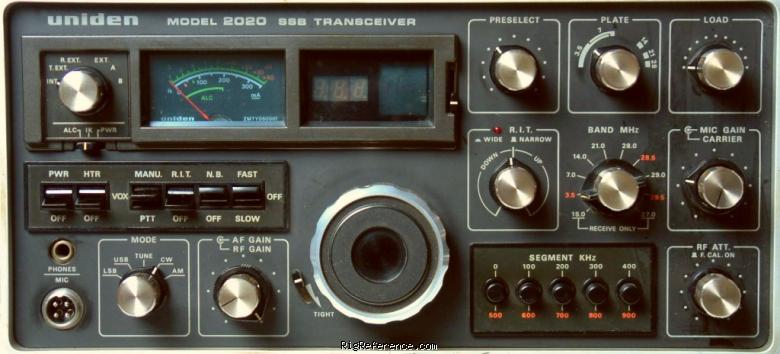

Uniden-Bearcat 2020

Desktop Shortwave Transceiver

View all reviews (0) Add a review Add to my shack



Login or Register to upload images

Frequency range

RX-range
80-10 m + 11 m + WWV (15 MHz)
TX-range
80-10 m (no WARC)
HAM bands
?
Stability
?
Tuning steps
?
Filters
?

Receiver

Modulations
AM   CW   SSB
Sensitivity
SSB/CW: 0.3 µV (10 dB S/N)
AM: 1 µV (10 dB S/N)
Selectivity
AM/SSB: 2.4 kHz (-6 dB), 4 kHz (-60 dB)
CW: 600 Hz (-6 dB), 1.5 kHz (-60 dB)
Receiver system
?
IF-frequencies
?
Image rejection
50 dB
Audio output
?

Transmitter

Modulations
AM   CW   SSB
RF-Output
SSB/CW: 100 W, AM: 50 W

Connections

Antenna
SO-239
Impedance
50Ω

Electrical

Power requirements
Mains or 13.8 V DC +/-10%
Current drain RX
2 / 7 A (heater off/on)
TX
22 A max.

Physical

Dimensions (w×h×d)
350 × 165 × 333 mm (13.78 × 6.50 × 13.11 in)
Weight
18.00 kg (39.7 lbs)
Form factor
Base Station
Manufactured
Between 197x and 197x
MPN
UNIDEN-BEARCAT-002020

Other features

Memories
?
Usage
Amateur / Ham radio operators
Features + options
6146B final
