Standard HX850S

Floating Marine Transceiver | GPS

Specs Manuals (0) Reviews (0) Prices (0) Compare

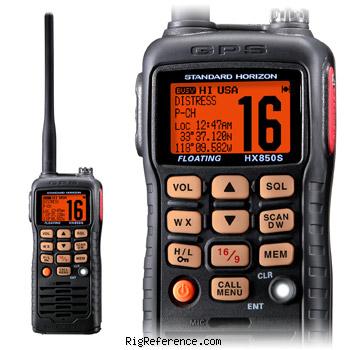

The Standard HX850S is a handheld transceiver. The frequency range for both reception and transmission is 156.025 - 163.275 MHz. RF output power is selectable at 1, 2.5, 5 or 6 W. Audio output is 700 mW. It features 1 memory bank with 40 channels. The HX850S includes DSC Distress, All Ships, Group and Position Polling. Other features include one-hand operation, rubber armor on the case for sure grip and durability, SOS strobe light, programmable channel names, and GPS. Power requirements are 12 V DC - 1150mAh Lithium-Ion.

General characteristics

HAM bands: None
Frequency stability: ?
Tuning steps: Channelized
Memories: 40 channels in 1 bank(s)

Receiver

RX-range: 156.025 - 163.275 MHz
Modulations: FM
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: 700 mW

Transmitter

TX-range: 156.025 - 163.275 MHz
Modulations: FM
RF-output: 1 / 2.5 / 5 / 6 W

Connections

Antenna: -
Impedance: 50Ω
Other: -

Electrical

Power requirements: 12 V DC - 1150mAh Lithium-Ion
Current drain RX: ?
TX: ?

Physical

Dimensions (w×h×d): ?
Weight: ?
Form factor: Handheld
Manufactured: Between 20xx and 201x

Other features

Usage: Marine / Navy
Features + options: DSC Distress, All Ships, Group and Position Polling
One hand operation
Rubber armor on case for sure grip and durability
SOS Strobe light
Programmable channel names
GPS
Accessories: -
RigReference ID: 5624
MPN: STANDARD-HX000850S
