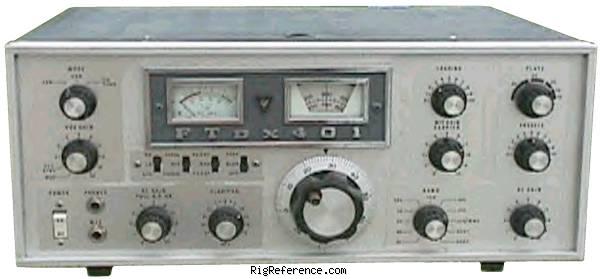

Yaesu FTdx-401B

General characteristics

HAM bands

80m  40m  20m  15m  10m

Frequency stability

?

Tuning steps

?

Memories

?

Receiver

RX-range

10-80 m + 30 m
11 m optional

Modulations

AM   CW   SSB

Sensitivity

?

Selectivity

?

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

?

Audio output

?

Transmitter

TX-range

10-80 m + 30 m
11 m optional

Modulations

AM   CW   SSB

RF-output

SSB: 560 W (PEP input), CW: 430 W (input), AM: 120 W (input)

Connections

Antenna

-

Impedance

50/100 Ω

Other

-

Electrical

Power requirements

Mains

Current drain RX

?

TX

?

Physical

Dimensions (w×h×d)

400 × 160 × 350 mm (15.75 × 6.30 × 13.78 in)

Weight

18.14 kg (40.0 lbs)

Form factor

Base Station

Manufactured

Between 19xx and 19xx in Japan

Other features

Usage

Amateur / Ham radio operators

Features + options

-

Accessories

-

RigReference ID

5661

MPN

YAESU-FTDX-000401B

Manuals, diagrams and brochures

Schematic YAESU FT-401B PDF - 1.00 MB, submitted by Michael Ince



Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FTdx-401B. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on similar Transceiver equipment, the estimated value of the Yaesu FTdx-401B is around:

• USD 210 ~ USD 390

This estimate is based on similar equipment and may not reflect the exact value of this model.
