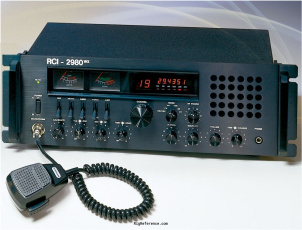

Ranger RCI-2980

General characteristics

HAM bands

11m (CB)

Frequency stability

?

Tuning steps

10 kHz

Memories

240 channels in 6 bank(s)

Receiver

RX-range

25.615-28.305 MHz

Modulations

AM   FM   CW   SSB

Sensitivity

AM/CW: 0.7 µV (10 dB S/N)
FM: 0.5 µV (12 dB SINAD)
SSB: 0.2 µV (10 dB S/N)

Selectivity

AM/FM: 10 kHz (-50 dB)
SSB: 2 kHz (-5 dB), 4 kHz (-60 dB)

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

?

Audio output

Internal speaker

Transmitter

TX-range

25.615-28.305 MHz

Modulations

AM   FM   CW   SSB

RF-output

25 W

Connections

Antenna

SO-239

Impedance

50Ω

Other

-

Electrical

Power requirements

Mains

Current drain RX

?

TX

?

Physical

Dimensions (w×h×d)

?

Weight

?

Form factor

Base Station

Manufactured

Between 20xx and 20xx in Taiwan

Other features

Usage

Citizen Band (27Mc)

Features + options

Roger beep
Dimmer
Echo tone
Variable RF power output

Accessories

-

RigReference ID

5790

MPN

RANGER-RCI-002980

Manuals, diagrams and brochures

Ranger RCI-2980 WX Owner's Manual PDF - 4.03 MB, submitted by Gerd
