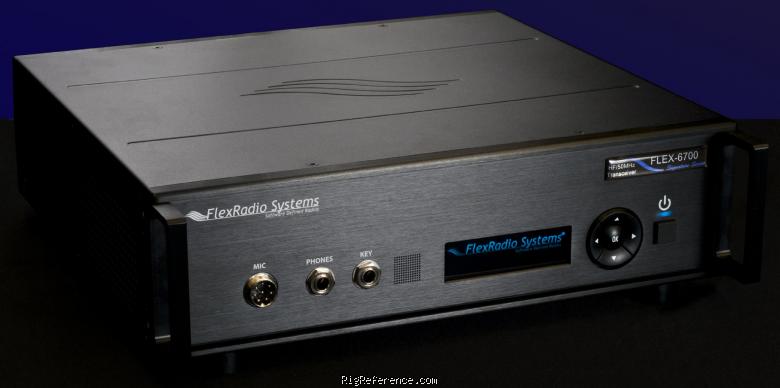

Receiver-only version of the FlexRadio FLEX-6700R transceiver. Part of the FLEX-6000 signature series with SmartSDR.

General characteristics

HAM bands
160m  80m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  11m (CB)  6m  10m
Frequency stability
0.02 p.p.m. OCXO
Tuning steps
1 Hz
Memories
?

Receiver

RX-range
30 kHz – 77 MHz
Modulations
AM   N-FM   CW   USB   LSB   DSB   RTTY
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
SDR, Direct Digital Sampling
IF-frequencies
?
Image rejection
≥ 100 dB
Audio output
1W diagnostic speaker

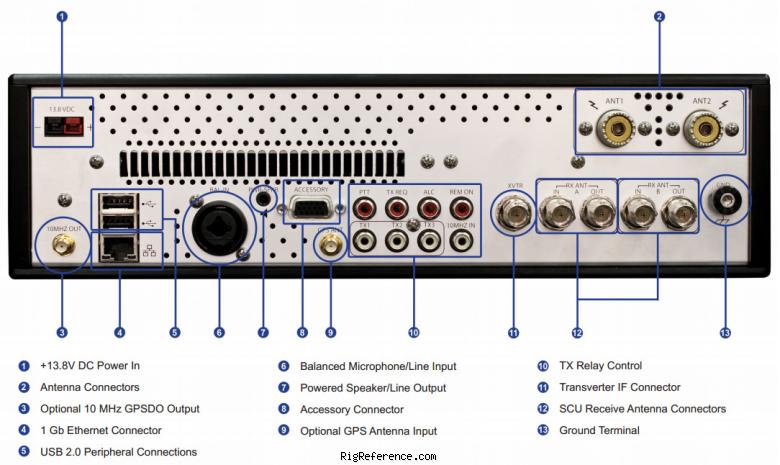

Connections

Antenna
BNC + SO-239
Impedance
5-500Ω
Other
-

Electrical

Power requirements
Mains (25-264 V AC, 47-63 Hz)
Current drain RX
20 W
TX
-

Physical

Dimensions (w×h×d)
330 × 305 × 102 mm (12.99 × 12.01 × 4.02 in) with feet
Weight
5.90 kg (13.0 lbs)
Form factor
Headless
Manufactured
Between 2013 and 20xx in USA

Other features

Usage
Amateur / Ham radio operators
Features + options
SDR (Software Defined Radio)
Ethernet

CPU / DSP: TMS320DM8168CYG4
RISC processor: 1.4 GHz ARM CortexTM-A8/NEON
DSP processor: 1.2 GHz TMS320C647x 32-bit FP
DSP Floating Point Operations: 121 GFLOPS
Accessories
-
RigReference ID
5944
MPN
FLEXRADIO-FLEX-006700R
