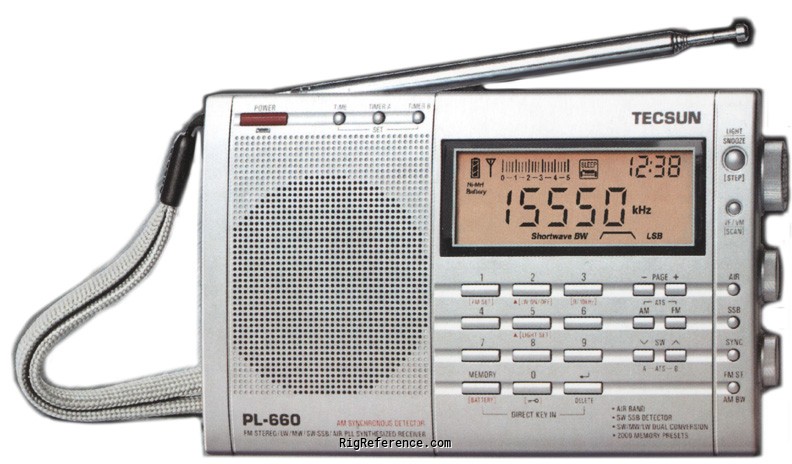

Tecsun PL-660 Handheld HF/VHF Receiver

 (0.0/5)  Add a story   View all stories (0)   Add to my shack



Login or Register to upload images

Frequency range

RX-range
100-519 / 522-1620 kHz / 1.7-30 / 87-108 MHz
TX-range
-
HAM bands
-
Stability
-
Tuning steps
9 / 10 / 100 kHz
Filters
-

Receiver

Modulations
AM   AM-sync   FM   W-FM Stereo   SSB
Sensitivity
3 µV
Selectivity
-
Receiver system
Double conversion superheterodyne
IF-frequencies
-
Image rejection
-
Audio output
1 W

Transmitter

Modulations
-
RF-Output
-

Connections

Antenna
Built-in telescopic
Impedance
50Ω

Electrical

Power requirements
6V DC (4 × R6 batteries)
Current drain RX
300 mA
TX
-

Physical

Dimensions (w×h×d)
188 × 117 × 30 mm (7.40 × 4.61 × 1.18 in)
Weight
450 gr (15.9 oz)
Form factor
Handheld
Manufactured
Between 20xx and 20xx
MPN

Other features

Memories
600 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Show other documents.

Stories & reviews

Do you know this rig? Tell us something about it!

What is it worth?

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the current value of the Tecsun PL-660. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's value of the Tecsun PL-660 might be around:

  • USD 90.00
Price Condition Year User
USD 110.00 New / Mint 2012 Rahob
USD 109.95 Used / Good 2013 universal-radio
