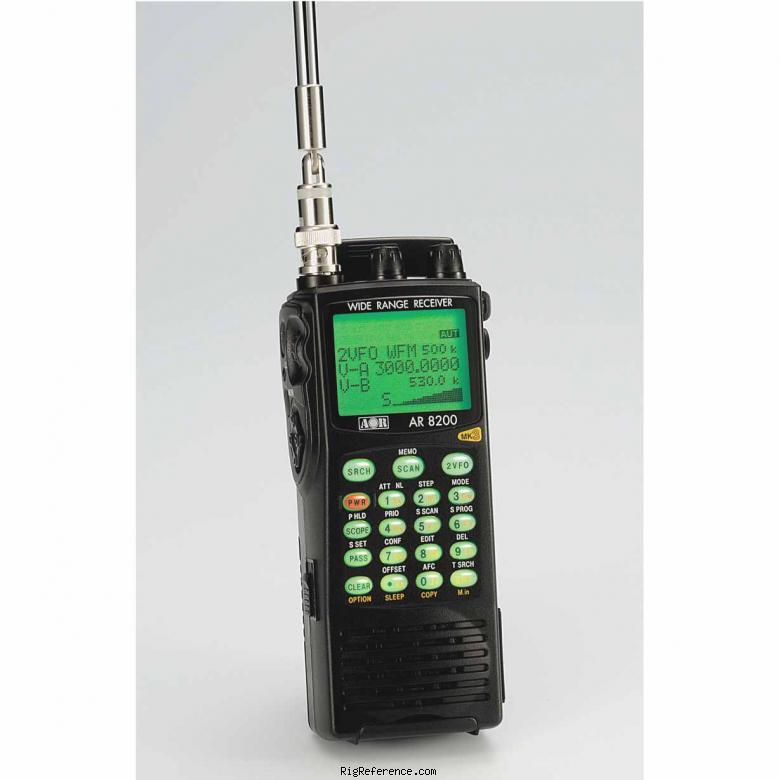

AOR AR-8200DU

General characteristics

HAM bands

?

Frequency stability

?

Tuning steps

?

Memories

1000 channels in 20 bank(s)

Receiver

RX-range

0.5-3000 MHz

Modulations

AM   N-AM   W-AM   S-FM   N-FM   W-FM   CW   USB   LSB   APCO-25

Sensitivity

AM (10 dB S/N)
0.53-2 MHz: 3.5 µV
2-30 MHz: 2.5 µV
30-470 MHz: 1.5 µV
N-FM (12 dB SINAD)
30-470 MHz: 0.85 µV
470-1040 MHz: 0.9 µV
1040-2040 MHz: 9 µV
2040-3000 MHz: 25 µV
W-FM (12 dB SINAD)
30-470 MHz: 1.5 µV

Selectivity

SSB/NAM
3 kHz (-6 dB), 9 kHz (-60 dB)
AM/S-FM
9 kHz (-6 dB), 20 kHz (-40 dB)
W-AM/N-FM
12 kHz (-6 dB), 25 kHz (-40 dB)
W-FM
150 kHz (-3 dB), 360 kHz (-20 dB

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

?

Audio output

?

Connections

Antenna

BNC

Impedance

50 Ω

Other

-

Electrical

Power requirements

4.8-6V DC (4R6/AA) or 12V DC external

Current drain RX

25-190 mA

TX

-

Physical

Dimensions (w×h×d)

61 × 143 × 39 mm (2.40 × 5.63 × 1.54 in)

Weight

217 gr (7.7 oz) without batteries and antenna

Form factor

Handheld

Manufactured

Between 2012 and 200x

Other features

Usage

Amateur / Ham radio operators

Features + options

CTCSS
Voice recording on micro SD card
USB interface
Analog voice scramler decoder (inverter)

Accessories

-

RigReference ID

5984

MPN

AOR-AR-008200DU
