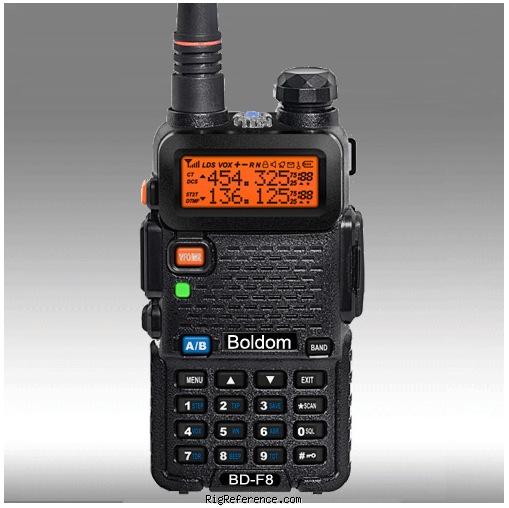

Boldom BD-F8

Triple-band FM Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

The Boldom BD-F8 is a triple-band FM transceiver. It covers 70-108 / 136-174 / 245-246 / 400-470 MHz in receive and 136-174 / 245-246 / 400-470 MHz in transmit. The frequency stability is ± 2.5 p.p.m. with tuning steps of 12.5 / 25 kHz. RF output power is 0.5 / 4 W. It features dual band, dual display, dual standby, FM radio (25 memory channels), VOX, CTCSS/DCS, 1750 Hz tone, repeater shift and a tri-color backlit display. Memory banks: 1 with 128 memory channels. Dimensions are 52 × 100 × 32 mm. Weight is 250 gr (incl. battery + antenna). Current drain in transmit mode is 1.6 A max.

General characteristics

HAM bands: 2m 1.25m 70cm
Frequency stability: ± 2.5 p.p.m.
Tuning steps: 12.5 / 25 kHz
Memories: 128 channels in 1 bank(s)

Receiver

RX-range: 70-108 / 136-174 / 245-246 / 400-470 MHz
Modulations: FM N-FM
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 136-174 / 245-246 / 400-470 MHz
Modulations: FM N-FM
RF-output: 0.5 / 4 W

Connections

Antenna: -
Impedance: 50Ω
Other: -

Electrical

Power requirements: ?
Current drain RX: ?
TX: 1.6 A max

Physical

Dimensions (w×h×d): 100 × 52 × 32 mm (3.94 × 2.05 × 1.26 in)
Weight: 250 gr (8.8 oz) incl. battery + antenna
Form factor: Handheld
Manufactured: Between 2013 and 201x in China

Other features

Usage: Amateur / Ham radio operators
Features + options: Dual band / dual display / dual standby
FM radio (25 memory channels)
VOX
CTCSS / DCS
1750 Hz tone
Repeater shift
Tri-color backlit display
Accessories: -
RigReference ID: 6000
MPN: BOLDOM-BD-F000008
