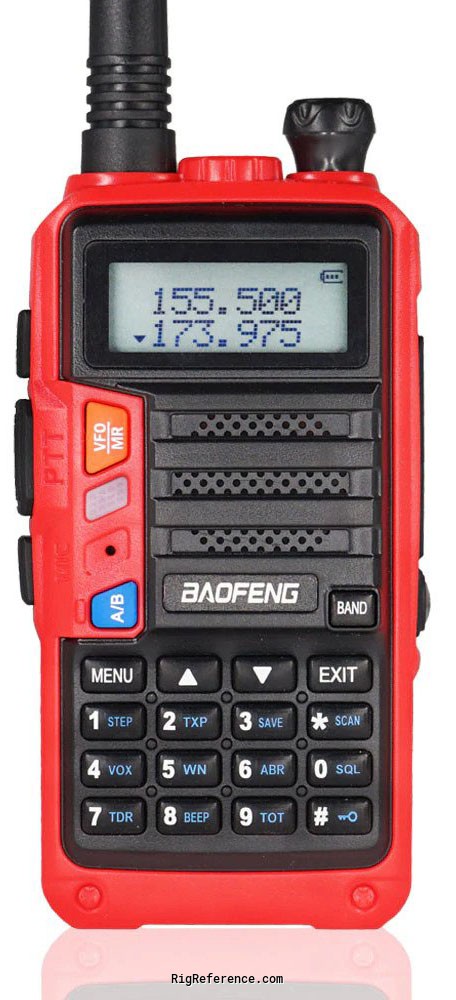

The Baofeng UV-5R Pro is a triple-band FM transceiver. It covers 65-108 / 136-174 / 200-260 / 400-520 MHz for reception and 136-174 / 200-260 / 400-520 MHz for transmission. The frequency stability is ± 2.5 p.p.m. Tuning steps are selectable from 2.5, 5, 6.25, 10, 12.5 and 25 kHz. Image rejection is 65/60 dB. RF output power is switchable between 1 and 8 W. Audio output is 1 W. It features 1 memory bank with 128 channels. The radio operates on a 7.4 V DC Li-ion battery, 1800 mAh. Current drain in receive mode is 380 mA max and ≤ 75 mA in standby. In transmit mode, current drain is 1.4 A max. Dimensions are 112 × 60 × 35 mm excl. antenna. The Baofeng UV-5R Pro features CTCSS/PL + DCS, DTMF, VOX, LED flashlight, Roger beep and PC programmability.
General characteristics
- HAM bands
- 2m 1.25m 70cm
- Frequency stability
- ± 2.5 p.p.m.
- Tuning steps
- 2.5 / 5 / 6.25 / 10 / 12.5 / 25 kHz
- Memories
- 128 channels in 1 bank(s)
Receiver
- RX-range
- 65-108 / 136-174 / 200-260 / 400-520 MHz
- Modulations
- FM N-FM W-FM
- Sensitivity
- ≤ 0.2 µV (12 dB SINAD)
- Selectivity
- ?
- Filters
- ?
- Receiver system
- Superheteodyne
- IF-frequencies
- ?
- Image rejection
- 65/60 dB
- Audio output
- 1 W
Transmitter
- TX-range
- 136-174 / 200-260 / 400-520 MHz
- Modulations
- FM N-FM
- RF-output
- 1 / 8 W
Connections
- Antenna
- SMA
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 7.4 V DC Li-ion, 1800 mAh
- Current drain RX
- 380 mA max, ≤ 75 mA in standby
- TX
- 1.4 A max
Physical
- Dimensions (w×h×d)
- 60 × 112 × 35 mm (2.36 × 4.41 × 1.38 in) excl. antenna
- Weight
- ?
- Form factor
- Handheld
- Manufactured
- Between 2019 and 202x in China
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- CTCSS/PL + DCS
DTMF
VOX
LED flashlight
Roger beep
PC-programmable. - Accessories
- -
- RigReference ID
- 6522
- MPN
- BAOFENG-UV-000005R-PRO
