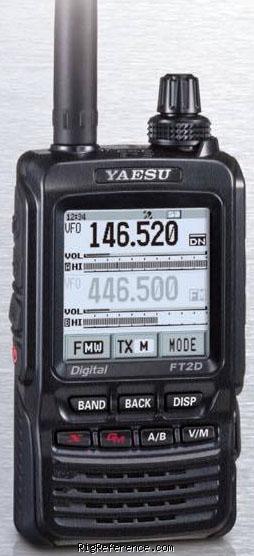

Introduced in early 2015, the Yaesu FT2DR covers from 500kHz to 999.990MHz, continuous reception for Short-wave, FM/AM broadcasts, analog TV stations, audio aircraft, public service channels, etc. (Cellular band blocked). Additional features include GPS with tracking, APRS operation, image transmit, etc.

General characteristics

HAM bands
6m  2m  1.25m  70cm
Frequency stability
?
Tuning steps
?
Memories
1245 channels in 1 bank(s)

Receiver

RX-range
0.5-1.8 / 1.8-30 / 30-76 / 76-108 / 108-137 / 137-174 / 174-222 / 222-420 / 420-470 / 470-774 / 774-999 MHz
Modulations
AM   FM   N-FM   W-FM
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
N-FM/ AM:Double-Conversion Superheterodyne FM / AM Radio: Direct-Conversion
IF-frequencies
?
Image rejection
?
Audio output
700 mW

Transmitter

TX-range
144 / 430 MHz
Modulations
FM
RF-output
0.5 / 2 / 5 W

Connections

Antenna
SMA
Impedance
50Ω
Other
-

Electrical

Power requirements
7.2 V DC 2200 mAh Li-Ion (SBR-14LI)
Current drain RX
?
TX
?

Physical

Dimensions (w×h×d)
62 × 110 × 33 mm (2.44 × 4.33 × 1.30 in) w/ SBR-14LI, w/o Knob and Antenna
Weight
310 gr (10.9 oz) With SBR-14LI and Antenna
Form factor
Handheld
Manufactured
Between 2015 and 201x

Other features

Usage
Amateur / Ham radio operators
Features + options
1.7" touch screen display
System Fusion compatible
FM friendly digital operation with AMS
Large touch display
Loud and Clear voice technology
Digital Group Monitor (GM)
Image Data Transfer
GPS
1200 / 9600 bps APRS
IPX5 water resistant
MicroSD card slot
Accessories
-
RigReference ID
6096
MPN
YAESU-FT000002DR

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Reviews & stories

Rating Title Submitted
One Fine Little Radio... 3 years ago by KE0MWN

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FT2DR. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Yaesu FT2DR is around:

  • USD 299.00 ~ USD 133.00
  • CAD 448.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2020 USD 300.00 Used / Good Jim M.
2018 CAD 450.00 New / Mint Mike CRABTREE
2017 USD 369.95 New / Mint KE0MWN
2017 USD 135.81 New / Mint Andrew Kraut
