Analog or digital IQ or IF signals are not ported to any connector. RoHS compliant from July 2013. New when price in 2013: USD 599.00

General characteristics

HAM bands
160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  11m (CB)  2m  1.25m  70cm  10m  4m
Frequency stability
?
Tuning steps
10 / 100 Hz / 1 / 10 / 100 kHz / 1 MHz
Memories
64 channels in 1 bank(s)

Receiver

RX-range
0.5-30 / 64-260 / 437-512 MHz
(0.15-500 kHz with limitations)
Modulations
AM   FM   N-FM   W-FM   CW   SSB
Sensitivity
HF: 0.125 µV (MDS)
108-150 MHz: 2.8 µV (12 dB SINAD)
UHF: 11.2-2.8 µV (12 dB SINAD)
Selectivity
HF: 500 Hz
108-150 MHz: 15 kHz
UHF: 15 kHz
Filters
?
Receiver system
DSP / Single / Double conversion
IF-frequencies
?
Image rejection
?
Audio output
0.8 W into 8 ohms

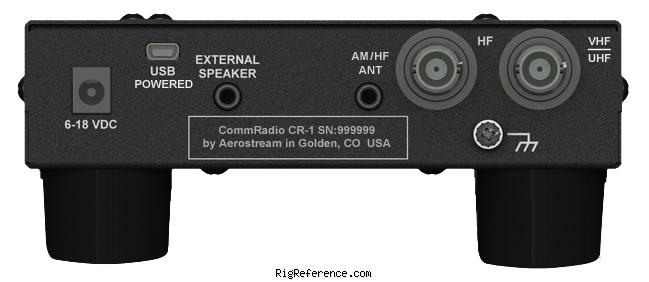

Connections

Antenna
BNC + Hi-Z
Impedance
50Ω
Other
-

Electrical

Power requirements
6-18 V DC or internal Li-ion battery
Current drain RX
?
TX
-

Physical

Dimensions (w×h×d)
143 × 62 × 155 mm (5.63 × 2.44 × 6.10 in)
Weight
794 gr (1.8 lbs)
Form factor
Base Station
Manufactured
Between 2013 and 20xx in USA by Aerostream

Other features

Usage
Amateur / Ham radio operators
Features + options
OLED-display, 1.5" (64*128 pixels)
I-Q sampling / 32-bit DSP
HF-Spectrum Scope
PC programmable
Mini-USB jack (software update and battery charging)
Accessories
-
RigReference ID
6018
MPN
COMMRADIO-CR-000001

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used CommRadio CR-1. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the CommRadio CR-1 is around:

  • USD 363.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2013 USD 599.00 New / Mint RigReference
