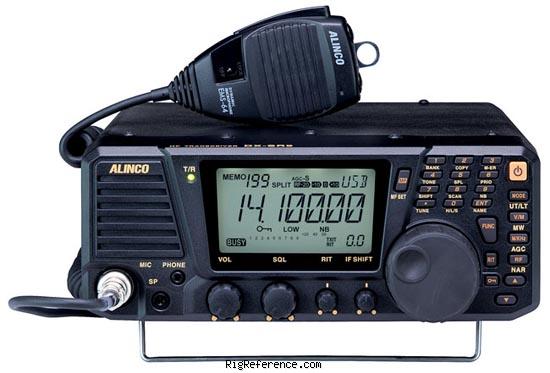

The Alinco DX-SR9 is the successor to the Alinco DX-SR8. It adds SDR and 10m coverage. The SDR system in DX-SR9 consists of I/Q signal output and a mixer circuit. It requires a high quality sound device (internal or USB-interface) and PC.
This radio lacks a CAT control interface.

General characteristics

HAM bands
160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  11m (CB)  10m
Frequency stability
± 1 p.p.m.
Tuning steps
10 Hz
Memories
600 channels in 3 bank(s)

Receiver

RX-range
135 kHz - 30 MHz
Modulations
AM   FM   CW   USB   LSB   PSK31/63
Sensitivity
AM
0.15-1.8 MHz: 10 µV
1.8-30 MHz: 2 µV
FM 28-30 MHz: 0.5 µV
SSB 0.15-1.8 MHz: 1 µV
CW 1.8-30 MHz: 0.25 µV
Selectivity
AM Narrow 2.4 kHz (-6 dB), 4.5 kHz (-60 dB)
AM/FM 6 kHz (-6 dB), 18 kHz (-60 dB)
SSB/CW 2.4 kHz (-6 dB), 4.5 kHz (-60 dB)
Filters
2.4 / 1 / 0.5 kHz
Receiver system
Double conversion superheterodyne / SDR
IF-frequencies
1st: 71.75 MHz
2nd: 455 kHz
Image rejection
70 dB
Audio output
More than 2.0 W into 8 ohm 10% THD

Transmitter

TX-range
10-160 m + WARC
5.3 MHz (USA only)
Modulations
AM   FM   CW   USB   LSB   PSK31/63
RF-output
FM/SSB/CW: 1/10/100 W, AM: 0.4/4/40 W

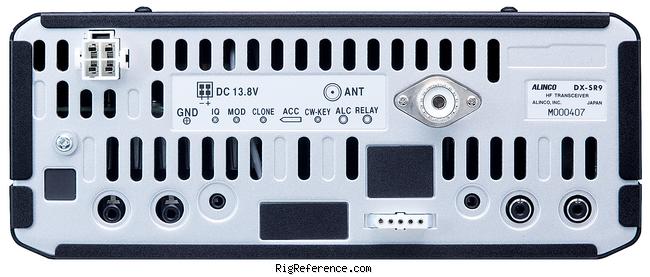

Connections

Antenna
SO-239
Impedance
50Ω
Other
-

Electrical

Power requirements
11.7 - 15.8V DC
Current drain RX
1 A max
TX
20 A max

Physical

Dimensions (w×h×d)
240 × 100 × 293 mm (9.45 × 3.94 × 11.54 in) including protrusions
Weight
4.10 kg (9.0 lbs)
Form factor
Base Station
Manufactured
Between 2013 and 201x

Other features

Usage
Amateur / Ham radio operators
Features + options

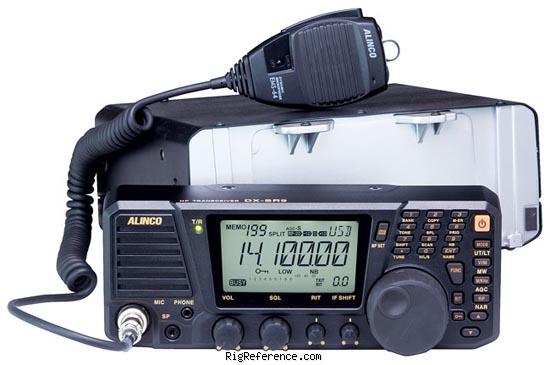

Detachable front-panel
IF-shift
Noise blanker
RIT/TXIT
Electronic keyer
Accessories
-
RigReference ID
6045
MPN
ALINCO-DX-SR000009
