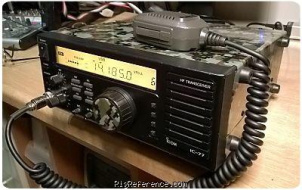

The ICOM IC-77 is a desktop shortwave transceiver. It covers 0.5-30 MHz for reception and 1.605-2 / 3.5-4 / 5-8 / 9-30 MHz for transmission. Image rejection is ≥ 70 dB. RF output is 5-100 W (AM 5-25 W). It features 1 memory bank with 50 channels. Power requirements are 13.8V DC or mains. The IC-77 weighs 3.9 kg and has a current drain of 1.3-2.1 A in receive mode and a maximum of 20 A in transmit mode. Dimensions are 95 × 240 × 239 mm.
General characteristics
- HAM bands
- 160m 80m 60m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 11m (CB) 10m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 50 channels in 1 bank(s)
Receiver
- RX-range
- 0.5-30 MHz
- Modulations
- AM CW USB LSB
- Sensitivity
- SSB/CW
1.605-30 MHz; ≥ 0.5 µV for 12 dB SINAD (Preamp ON)
AM
0.5-1.605 MHz; ≥ 12.6 µV for 10 dB S/N (Preamp ON)
1.605-30 MHz; ≥ 2.0 µV for 10 dB S/N (Preamp ON) - Selectivity
- SSB/CW
2.1 kHz/-6 dB, 4.0 kHz/-60 dB
AM
6.0 kHz/-6 dB, 20 kHz/-60 dB - Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ≥ 70 dB
- Audio output
- ?
Transmitter
- TX-range
- 1.605-2 / 3.5-4 / 5-8 / 9-30 MHz
- Modulations
- AM CW USB LSB
- RF-output
- 5-100 W (AM 5-25 W)
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC or mains
- Current drain RX
- 1.3-2.1 A
- TX
- Max 20 A
Physical
- Dimensions (w×h×d)
- 240 × 95 × 239 mm (9.45 × 3.74 × 9.41 in)
- Weight
- 3.90 kg (8.6 lbs)
- Form factor
- Base Station
- Manufactured
- Between 19xx and 19xx in Japan
Other features
- Usage
- Commercial / Land mobile communication
- Features + options
- -
- Accessories
- -
- RigReference ID
- 6126
- MPN
- ICOM-IC-000077
Manuals, diagrams and brochures
- Icom IC-77 Instruction Manual PDF - Unknown size, submitted by RigReference
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-77. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the ICOM IC-77 in Good condition is around:
- EUR 300
These estimates are based on the following prices:
