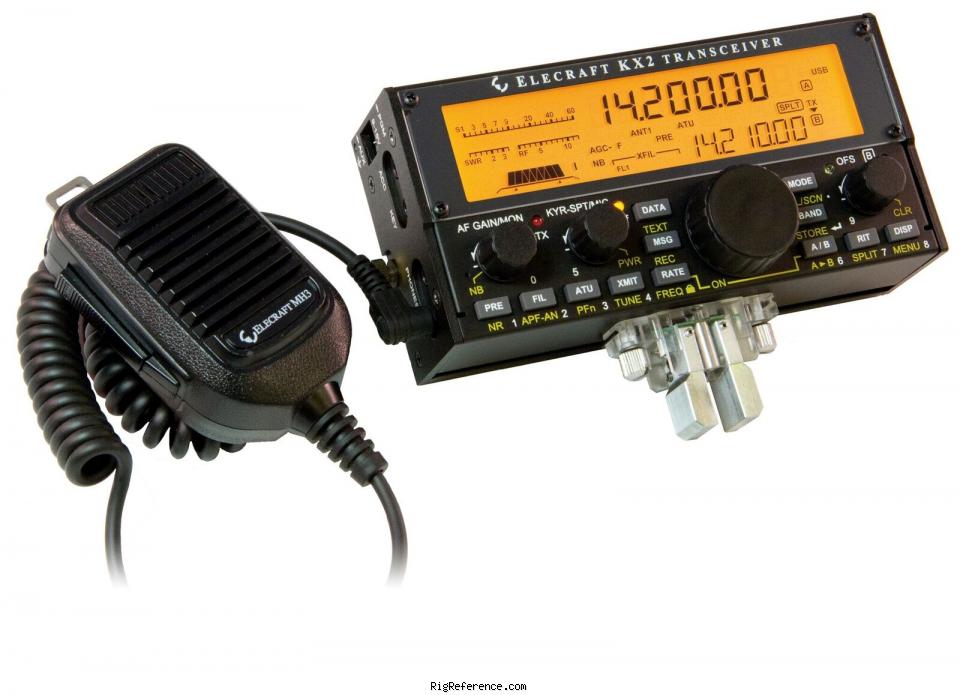

Elecraft KX2

General characteristics

HAM bands

80m  40m  20m  15m  10m

Frequency stability

?

Tuning steps

?

Memories

?

Receiver

RX-range

3-32 MHz
0.5-3 MHz with reduced sensitivity

Modulations

CW   SSB

Sensitivity

0.2 µV (10 dB S+N/N)

Selectivity

?

Filters

?

Receiver system

SDR using high-performance 32-bit floating-point DSP

IF-frequencies

?

Image rejection

?

Audio output

?

Transmitter

TX-range

80-10 m ham bands

Modulations

CW   SSB

RF-output

80-15m: 10W max, 12-10m: 8W max

Connections

Antenna

BNC

Impedance

50 Ω

Other

-

Electrical

Power requirements

6.5-14V DC

Current drain RX

135 mA

TX

?

Physical

Dimensions (w×h×d)

147 × 71 × 38 mm (5.79 × 2.80 × 1.50 in) without options

Weight

370 gr (13.1 oz) without options

Form factor

Portable

Manufactured

Between 2016 and 201x in USA

Other features

Usage

Amateur / Ham radio operators

Features + options

Built-in PSK/TTY decode/encode
Built-in QSK keyer
Built-in speaker
Low-profile knops and feet
Rear tilt foot
High contrast alphanumeric LCD
Integrated numeric keypad for direct frequency entry
Computer control via supplied USB or RS232 cable

Accessories

-

RigReference ID

6133

MPN

ELECRAFT-KX000002

Manuals, diagrams and brochures

No documents available for this particular model.



Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Elecraft KX2. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the Elecraft KX2 in Good condition is around:

• USD 563 ~ USD 677

Price History Chart

These estimates are based on the following prices:
