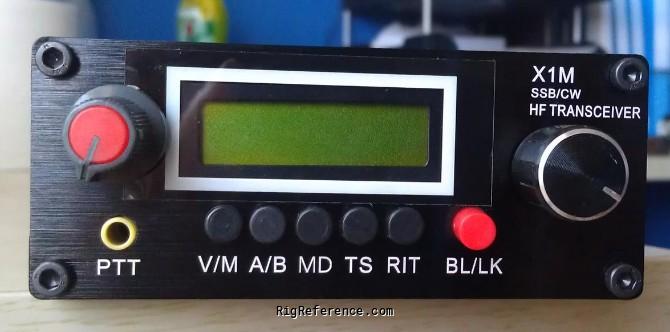

Xiegu X1M

General characteristics

HAM bands

80m  40m  20m  15m  10m

Frequency stability

?

Tuning steps

?

Memories

100 channels in bank(s)

Receiver

RX-range

0.1-30 MHz

Modulations

CW   SSB

Sensitivity

0.45 µV

Selectivity

?

Filters

?

Receiver system

Single conversion superheterodyne

IF-frequencies

9 MHz

Image rejection

?

Audio output

?

Transmitter

TX-range

0.1-30 MHz (band filters for 80, 40, 20, 15 and 10 m)

Modulations

CW   SSB

RF-output

5 W max

Connections

Antenna

SO-239

Impedance

50Ω

Other

-

Electrical

Power requirements

9.6-14.5 V DC

Current drain RX

500 mA max

TX

1.3 A max

Physical

Dimensions (w×h×d)

97 × 40 × 155 mm (3.82 × 1.57 × 6.10 in)

Weight

650 gr (1.4 lbs)

Form factor

Portable

Manufactured

Between 2013 and 2017 in China

Other features

Usage

Amateur / Ham radio operators

Features + options

Built-in CW keyer
TTL-level serial interface
RIT

Accessories

-

RigReference ID

6673

MPN

XIEGU-X000001M

Manuals, diagrams and brochures

No manuals yet for the Xiegu X1M. Have a PDF of the user manual, service manual, or schematic? Upload it and help the next operator.



Upload relevant documents

Reviews

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Xiegu X1M. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on similar Transceiver equipment, the estimated value of the Xiegu X1M is around:

• USD 232 ~ USD 430

This estimate is based on similar equipment and may not reflect the exact value of this model.

These estimates are based on the following prices:
