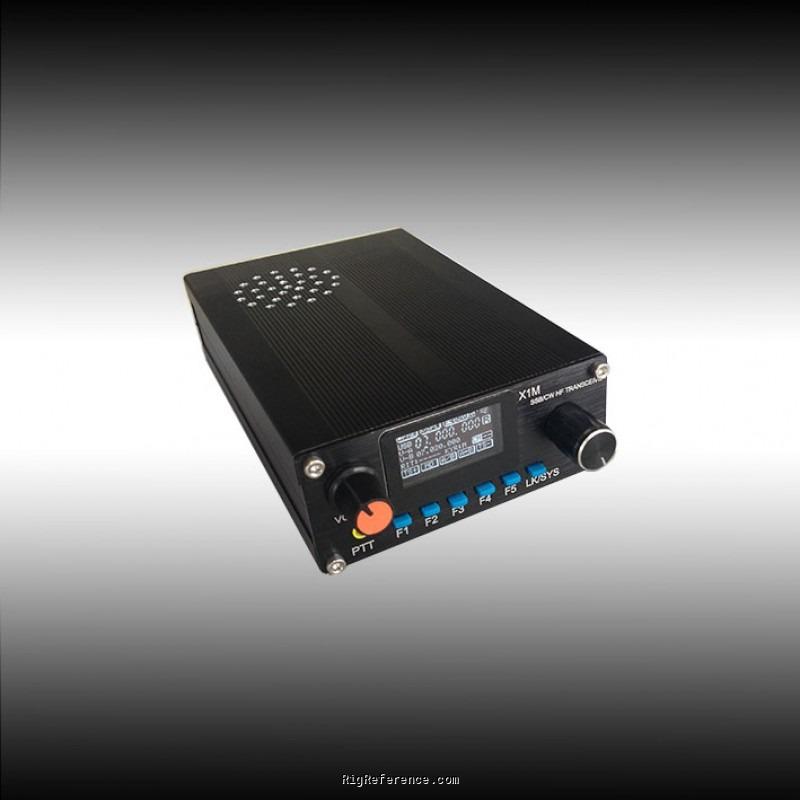

Xiegu X1M Pro

General characteristics

HAM bands

80m  40m  20m  15m  10m

Frequency stability

≥ 0.5 p.p.m. after warm-up (5 minutes)

Tuning steps

1 kHz

Memories

32 channels in 1 bank(s)

Receiver

RX-range

100 kHz - 30 MHz

Modulations

CW   USB   LSB

Sensitivity

≥ 0.45 µV

Selectivity

?

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

?

Audio output

?

Transmitter

TX-range

3.5-3.9, 7.0-7.3, 14.0-14.35, 21.0-21.45, 28.0-29.7 MHz

Modulations

CW   USB   LSB

RF-output

≥4.5 W

Connections

Antenna

BNC

Impedance

50Ω

Other

-

Electrical

Power requirements

12.0-13.0 V DC (recommended range)

Current drain RX

0.5 A

TX

1.8 A max

Physical

Dimensions (w×h×d)

97 × 40 × 155 mm (3.82 × 1.57 × 6.10 in)

Weight

650 gr (1.4 lbs)

Form factor

Portable

Manufactured

Between 2017 and 20xx in China

Other features

Usage

Amateur / Ham radio operators

Features + options

RIT
Built-in CW keyer
TTL-level serial interface
Compatible with Ham Radio Deluxe
LCD display

Accessories

-

RigReference ID

6192

MPN

XIEGU-X000001M-PRO

Manuals, diagrams and brochures

Xiegu X1M User's Guide PDF - 571.4 kB, submitted by RigReference

Xiegu X1M Manual v.2 PDF - 342.8 kB, submitted by RigReference



Upload relevant documents

Reviews

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Xiegu X1M Pro. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the Xiegu X1M Pro in Good condition is around:

• USD 297
