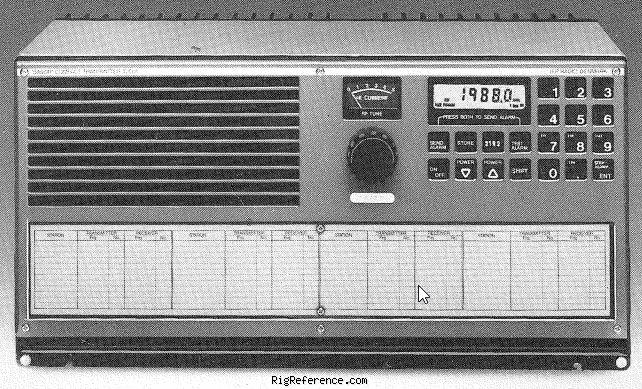

Sailor T2031

General characteristics

HAM bands

?

Frequency stability

Less then ± 20 hz (0-40 °C)

Tuning steps

?

Memories

128 channels in 1 bank(s)

Receiver

RX-range

1600-4300 kHz

Modulations

SSB

Sensitivity

J3E (SSB) <10 dB/µV for 20 dB SINAD
H3E (AM) <24 dB/µV for 20 dB SINAD

Selectivity

J3E (SSB) 350 Hz to 2700 Hz at -6 dB
H3E (AM) ±3.3 kHz at -6 dB

Filters

?

Receiver system

Double conversion super heterodyne

IF-frequencies

1st IF 70 MHz. 2nd 10.73 MHz

Image rejection

≥ 70 dB

Audio output

?

Transmitter

TX-range

1600-4300 kHz

Modulations

SSB

RF-output

400 W PEP

Connections

Antenna

-

Impedance

50Ω

Other

-

Electrical

Power requirements

21.6 - 31.2 V DC

Current drain RX

0.9 A

TX

13 A max

Physical

Dimensions (w×h×d)

?

Weight

18.00 kg (39.7 lbs)

Form factor

Base Station

Manufactured

Between 19xx and 19xx in Denmark

Other features

Usage

Marine / Navy

Features + options

94 Quick-select channels
Manual antenna tuner
One key selection of 2192 kHz distress frequency
Membrane keypad

Accessories

-

RigReference ID

6137

MPN

SAILOR-T002031
