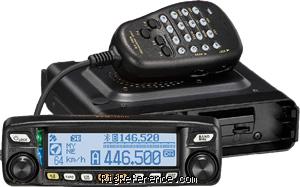

Yaesu FTM-100DR/DE

Mobile VHF/UHF Transceiver

Specs Manuals (0) Reviews (0) Prices (3) Compare

The Yaesu FTM-100DR/DE is a Mobile VHF/UHF Transceiver. It covers 108-137 / 137-174 / 174-400 / 400-480 / 480-999 MHz (Cellular blocked in the US) for receive and 144-146 / 430-440 MHz (Europe) or 144-148 / 430-450 MHz (USA) for transmit. Frequency stability is ± 2.5 p.p.m. Tuning steps are selectable from 5 to 100 kHz. RF output is selectable between 5, 20 and 50 W. Audio output is 3 W. It features a GPS-receiver, 1200/9600bps APRS® (Automatic Packet Reporting System), Bluetooth and SD-card slot. Memory capacity is 500 channels in one bank. Power requirements are 11.7-15.8 V DC. Current drain is 0.5 A on receive and 12 A max on transmit. Dimensions are 45 × 140 × 193 mm. Weight is 1.1 kg.

General characteristics

HAM bands: 2m 70cm
Frequency stability: ± 2.5 p.p.m.
Tuning steps: 5 / 6.25 / 8.33 / 9 / 10 / 12.5 / 15 / 20 / 25 / 50 / 100 kHz
Memories: 500 channels in 1 bank(s)

Receiver

RX-range: 108-137 / 137-174 / 174-400 / 400-480 / 480-999 MHz (Cellular blocked in the US)
Modulations: AM FM N-FM W-FM Stereo
Sensitivity: AM (10 dB S/N)
108-137 MHz: 0.8 µV

FM (12 dB SINAD)
137-150 MHz: 0.2 µV
150-174 MHz: 0.25 µV
174-222 MHz: 0.3 µV
222-300 MHz: 0.25 µV
300-336 MHz: 0.8 µV
336-420 MHz: 0.25 µV
420-520 MHz: 0.2 µV
800-900 MHz: 0.4 µV
900-1000 MHz: 0.8 µV
Selectivity: AM / FM: 12 kHz (-6 dB), 30 kHz (-60 dB)
Filters: ?
Receiver system: ?
IF-frequencies: 1st: 47.25 MHz
2nd: 450 kHz
Image rejection: ?
Audio output: 3 W

Transmitter

TX-range: 144-146 / 430-440 MHz (Europe)
144-148 / 430-450 MHz (USA)
Modulations: FM N-FM
RF-output: 5 / 20 / 50 W

Connections

Antenna: SO-239
Impedance: 50Ω
Other: -

Electrical

Power requirements: 11.7-15.8 V DC
Current drain RX: 0.5 A
TX: 12 A max

Physical

Dimensions (w×h×d): 140 × 45 × 193 mm (5.51 × 1.77 × 7.60 in)
Weight: 1.10 kg (2.4 lbs)
Form factor: Mobile
Manufactured: Between 200x and 200x

Other features

Usage: Amateur / Ham radio operators
Features + options: GPS-receiver
1200/9600bps APRS® (Automatic Packet Reporting System)
Bluetooth
SD-card slot
Accessories: -
RigReference ID: 6161
MPN: YAESU-FTM-000100DR/DE

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: No documents available for this particular model.

: Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FTM-100DR/DE. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the Yaesu FTM-100DR/DE in Good condition is around:

CAD 263
USD 226 ~ USD 451

Price History Chart

These estimates are based on the following prices:

Year	Historic price	Condition	Submitted by
2020	CAD 350.00	Used / Mint	Mike Caissie
2020	USD 600.00	Used / Mint	Daniel Kondlatsch
2016	USD 300.00	New / Mint	nd3q
