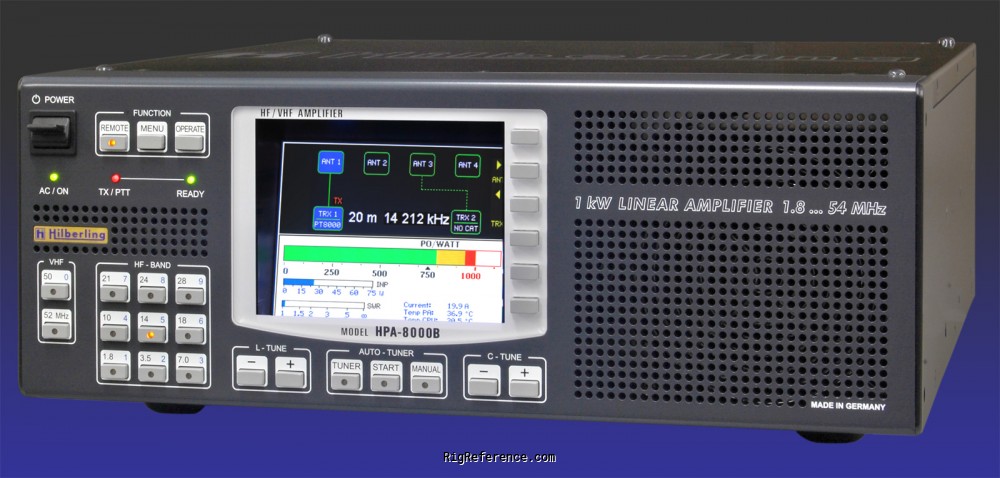

Hilberling HPA-8000B 1 kW Linear Amplifier

 (0.0/5)  Add a story   View all stories (0)   Add to my shack



FCC-approved version of the Hilberling HPA-8000B, for the American market?

Frequency range

RX-range
1.8-70 MHz
TX-range
1.8-70 MHz
HAM bands
160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  6m  10m  4m
Stability
-
Tuning steps
-
Filters
-

Receiver

Modulations
All mode   AM   FM   CW   SSB
Sensitivity
-
Selectivity
-
Receiver system
-
IF-frequencies
-
Image rejection
-
Audio output
-

Transmitter

Modulations
All mode   AM   FM   CW   SSB
RF-Output
1 kW @ 50 W input

Connections

Antenna
N-type
Impedance
-

Electrical

Power requirements
Mains, internal PSU, 200-260 V AC
Current drain RX
-
TX
13 A max

Physical

Dimensions (w×h×d)
425 × 459 × 173 mm (16.73 × 18.07 × 6.81 in)
Weight
19.80 kg (43.7 lbs)
Form factor
Base Station
Manufactured
Between 2017 and 20xx in Germany

Other features

Memories
-
Usage
Amateur / Ham radio operators
Features + options
Interfaces: RS-232, CI-V, USB
Accessories
-
