General characteristics

HAM bands
160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  6m  10m
Frequency stability
≥ ±0.05 p.p.m.
Tuning steps
1 Hz minimum
Memories
101 channels in bank(s)

Receiver

RX-range
0.03-60 MHz
Modulations
AM   FM   CW   USB   LSB   RTTY   PSK31/63
Sensitivity
SSB, CW, RTTY, PSK (BW=2.4 kHz, 10 dB S/N)
0.100–1.799 MHz 0.5 µV (pre-amp 1 ON)
1.800–29.990 MHz 0.16 µV (pre-amp 1 ON)
50.000–54.000 MHz 0.13 µV (pre-amp 2 ON)
AM (BW=6 kHz, 10 dB S/N)
0.100–1.799 MHz 6.3 µV (pre-amp 1 ON)
1.800–29.990 MHz 2 µV (pre-amp 1 ON)
50.000–54.000 MHz 1 µV (pre-amp 2 ON)
FM (BW=15 kHz, 12 dB SINAD)
28.000–29.990 MHz 0.5 µV (pre-amp 1 ON)
50.000–54.000 MHz 0.32 µV (pre-amp 2 ON)
Selectivity
SSB, RTTY (BW=2.4 kHz)
More than 2.4 kHz/–3 dB
Less than 3.6 kHz/–60 dB
CW/RTTY/PSK (BW=500 Hz)
More than 500 Hz/–3 dB
Less than 700 Hz/–60 dB
AM (BW=6 kHz)
More than 6.0 kHz/–3 dB
Less than 15.0 kHz/–60 dB
FM (BW=15 kHz)
More than 12.0 kHz/–6 dB
Less than 20.0 kHz/–60 dB
Filters
15 / 6 / 3 / 1.2 kHz
Receiver system
Double conversion superheterodyne
IF-frequencies
1st: 64.455 MHz (MAIN band), 64.555 MHz (SUB band)
2nd: 36 kHz
Image rejection
≥ 70 dB
Audio output
2.6 W at 10% distortion with an 8 Ω load

Transmitter

TX-range
160-6 m
Modulations
AM   FM   CW   USB   LSB   RTTY   PSK31/63
RF-output
5-200 W

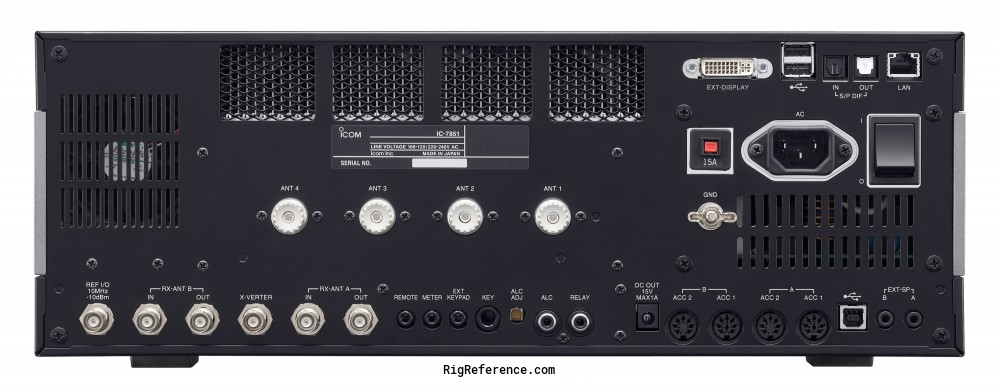

Connections

Antenna
BNC + SO-239
Impedance
50Ω
Other
-

Electrical

Power requirements
Mains (85-265 V AC)
Current drain RX
200 VA
TX
800 VA max

Physical

Dimensions (w×h×d)
425 × 149 × 435 mm (16.73 × 5.87 × 17.13 in)
Weight
23.50 kg (51.8 lbs)
Form factor
Base Station
Manufactured
Between 2014 and 201x in Japan

Other features

Usage
Amateur / Ham radio operators
Features + options
7-inch display
Waterfall / scope
USB, Ethernet, SP/DIF
SD Card
Antenna tuner
Accessories
-
RigReference ID
6315
MPN
ICOM-IC-007851

Manuals, diagrams and brochures

Product review from QST PDF - 3.42 MB, submitted by RigReference

Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-7851. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the ICOM IC-7851 is around:

  • EUR 6311.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2019 EUR 7000.00 Used / Mint Helmut
