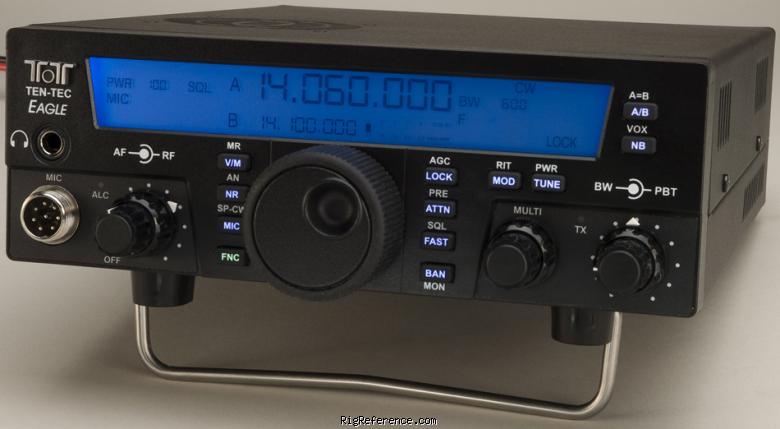

The Ten-Tec 599 Eagle is a transceiver combining simplified controls and ease of operation with the excellent performance of a low first IF 160-through 6-meter ham-band architecture in a compact, mobile-friendly structure. The analog portion of the radio is double conversion with IF frequencies of 9.0015 MHz and 22.5 kHz. A third conversion to zero-frequency IF is accomplished in the DSP processor.
Same as the Ten-Tec Eagle (599) with added built-in antenna tuner.
General characteristics
- HAM bands
- 160m 80m 60m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 6m 10m
- Frequency stability
- ± 0.5 p.p.m.
- Tuning steps
- 1 / 10 / 100 Hz / 1 / 10 kHz
- Memories
- 100 channels in 1 bank(s)
Receiver
- RX-range
- 0.5-30 / 50-54 MHz
- Modulations
- AM FM CW USB LSB FSK AFSK
- Sensitivity
- SSB: 0.5 µV, 2.4khz, 10dB SINAD
AM: 1.3 µV, 30% Mod, 6kHz BW, 10dB SINAD
FM: 2.2 µV, 5kHz Dev, 16kHz BW, 10dB SINAD
all with preamp off - Selectivity
- SSB/CW: 2.4 kHz
AM: 6 kHz
FM: 12 kHz - Filters
- Optional 300, 600, 1k, 1.8k, 6k, 15k
- Receiver system
- Double conversion + DSP
- IF-frequencies
- 1st: 9.0015 MHz
2nd: 22.5 kHz
3rd: 0 Hz (DSP) - Image rejection
- 1st IF: >90dB/HF bands,>70dB/6M 2nd IF: >73dB
- Audio output
- 2W into 4 ohms, <3% THD
Transmitter
- TX-range
- 160-10 m + WARC + 6 m
- Modulations
- AM FM CW USB LSB FSK AFSK
- RF-output
- 5-100 W (100% duty cycle)

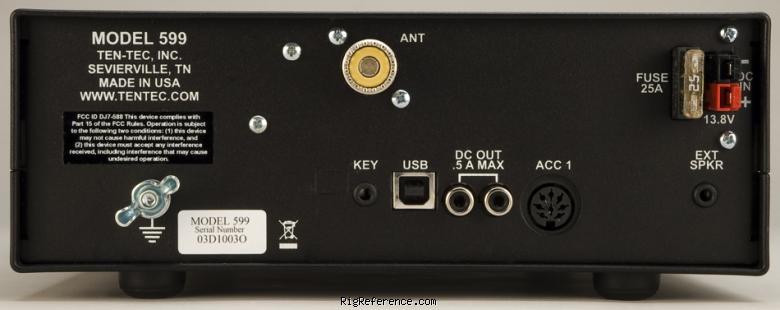

Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC ±15%
- Current drain RX
- 1.25 A
- TX
- 20 A
Physical
- Dimensions (w×h×d)
- 216 × 74 × 311 mm (8.50 × 2.91 × 12.24 in) excluding knobs and connectors
- Weight
- 3.30 kg (7.3 lbs) with all options
- Form factor
- Base Station
- Manufactured
- Between 2010 and 20xx in USA
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- IF-DSP
CTCSS
USB-connector
Color display - Accessories
- -
- RigReference ID
- 5439
- MPN
- TEN-TEC-EAGLE-(000599AT)
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Ten-Tec Eagle (599AT). Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Transceiver equipment, the estimated value of the Ten-Tec Eagle (599AT) is around:
- USD 232 ~ USD 431
This estimate is based on similar equipment and may not reflect the exact value of this model.
These estimates are based on the following prices:
