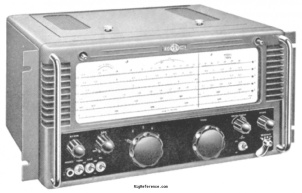

The Eddystone 730/7 is a standard Eddystone 730/4 with modifications to provide coverage for the 200-420 kHz band instead of the usual 480-1100 kHz.

General characteristics

HAM bands
?
Frequency stability
Below 10 MHz: 50 Hz/MHz Above 10 MHz: 20 Hz/MHz Both after 30 minutes warm-up
Tuning steps
?
Memories
?

Receiver

RX-range
0.2-0.42 / 1.1-30 MHz in 5 bands
Modulations
AM   CW
Sensitivity
AM: 5 µV
CM 1-2 µV
Selectivity
1.5 / 3.0 / 6.0 / 12.0 kHz selectable (-6 dB)
Filters
500 Hz switchable crystal filter
Receiver system
Superheterodyne
IF-frequencies
450 kHz
Image rejection
?
Audio output
1 W

Connections

Antenna
-
Impedance
70/80Ω
Other
-

Electrical

Power requirements
Mains (100-125 or 200-250 V AC) or external PSU
Current drain RX
80 W
TX
-

Physical

Dimensions (w×h×d)
?
Weight
?
Form factor
Base Station
Manufactured
Between 1959 and 196x in Great Britain

Other features

Usage
Military communication
Features + options
-
Accessories
-
RigReference ID
6358
MPN
EDDYSTONE-000730/7
