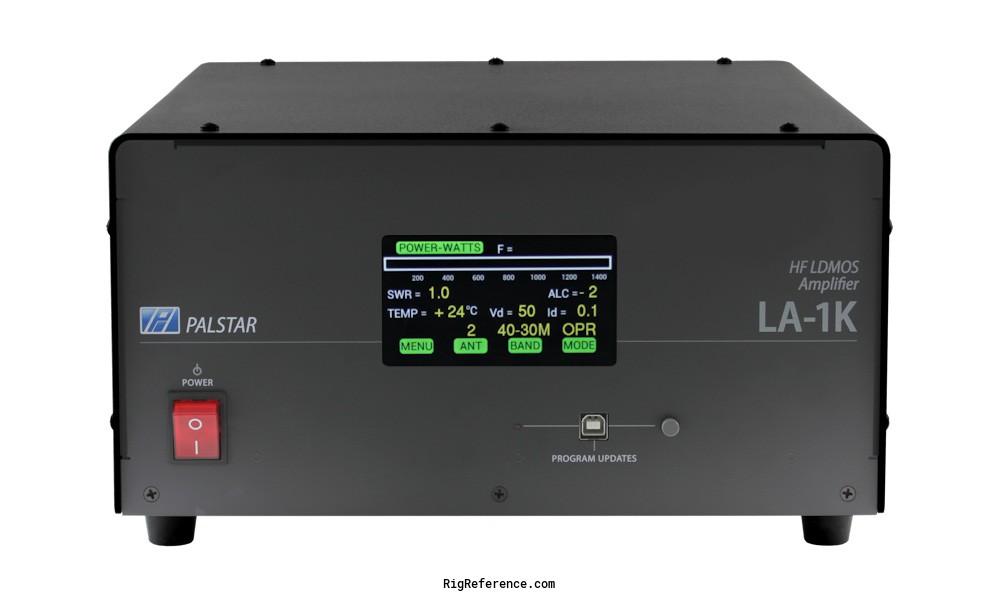

The Palstar LA-1K is a 1.8-54 MHz / 160-6 m linear amplifier. RF output is SSB: 1000 W PEP, FM/RTTY: 500W, AM: 275 W. It features up-gradable firmware, a color TFT touch screen and auto band switching. The LA-1K requires 100-260 V AC power and has a maximum current drain of 42 A during transmit. It weighs 12.25 kg.
General characteristics
- HAM bands
- 6m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Transmitter
- TX-range
- 1.8-54 MHz / 160-6 m
- Modulations
- All mode
- RF-output
- SSB: 1000 W PEP, FM/RTTY: 500W, AM: 275 W

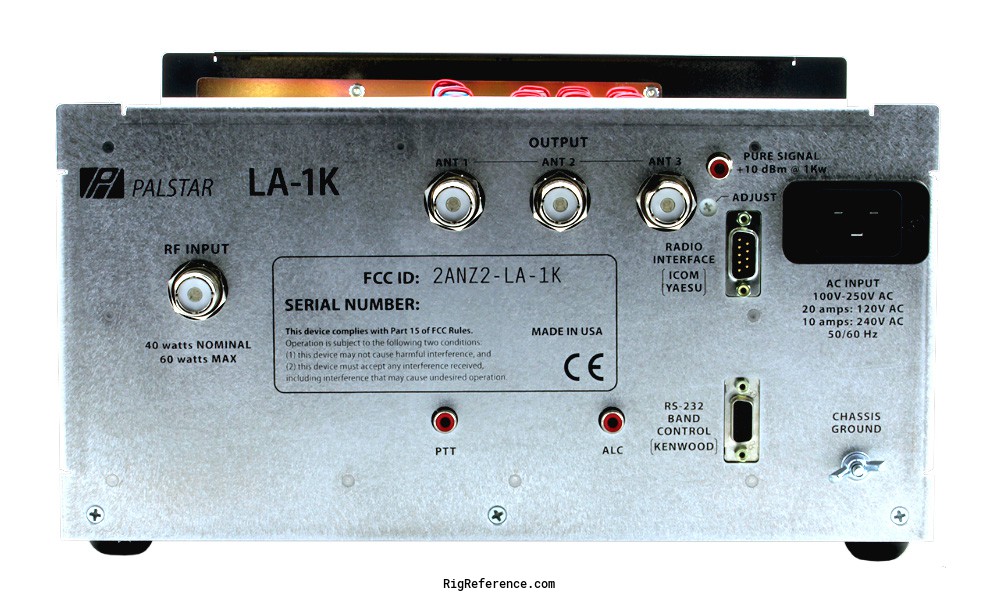

Connections
- Antenna
- SO-239 + N-type
- Impedance
- ?
- Other
- -
Electrical
- Power requirements
- 100-260 V AC
- Current drain RX
- ?
- TX
- 42 A max
Physical
- Dimensions (w×h×d)
- ?
- Weight
- 12.25 kg (27.0 lbs)
- Form factor
- Base Station
- Manufactured
- Between 2018 and 20xx in USA
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Up-gradable firmware

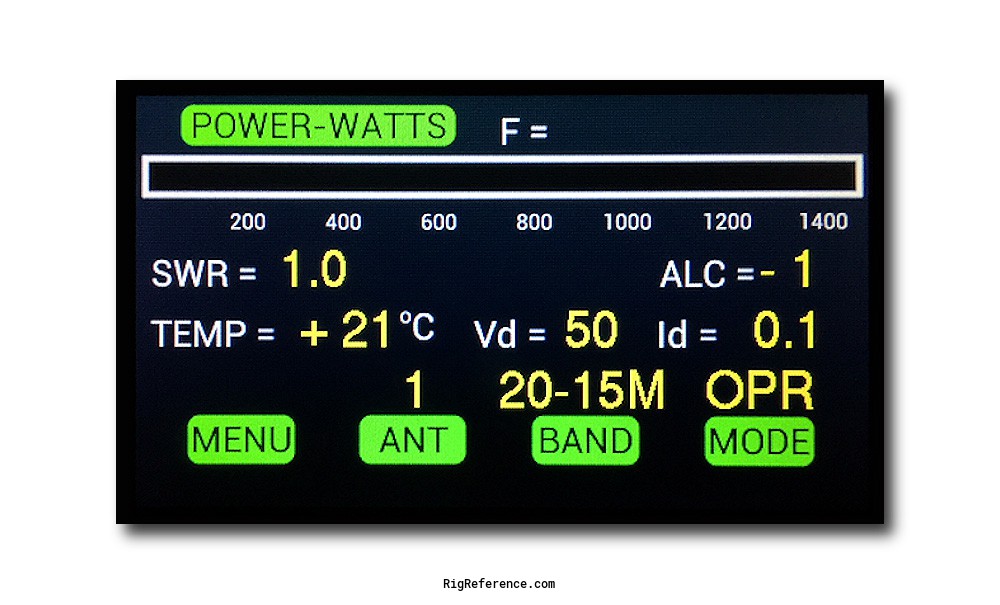

Color TFT touch screen
Auto band switching - Accessories
- -
- RigReference ID
- 6413
- MPN
- 9005800
Manuals, diagrams and brochures
- Palstar LA-1K Leaflet Feb 2018 PDF - 1.80 MB, submitted by RigReference
- Palstar LA1K Techical Manual PDF - 2.96 MB, submitted by RigReference
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Palstar LA-1K. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Palstar LA-1K in Good condition is around:
- USD 2,474
These estimates are based on the following prices:
