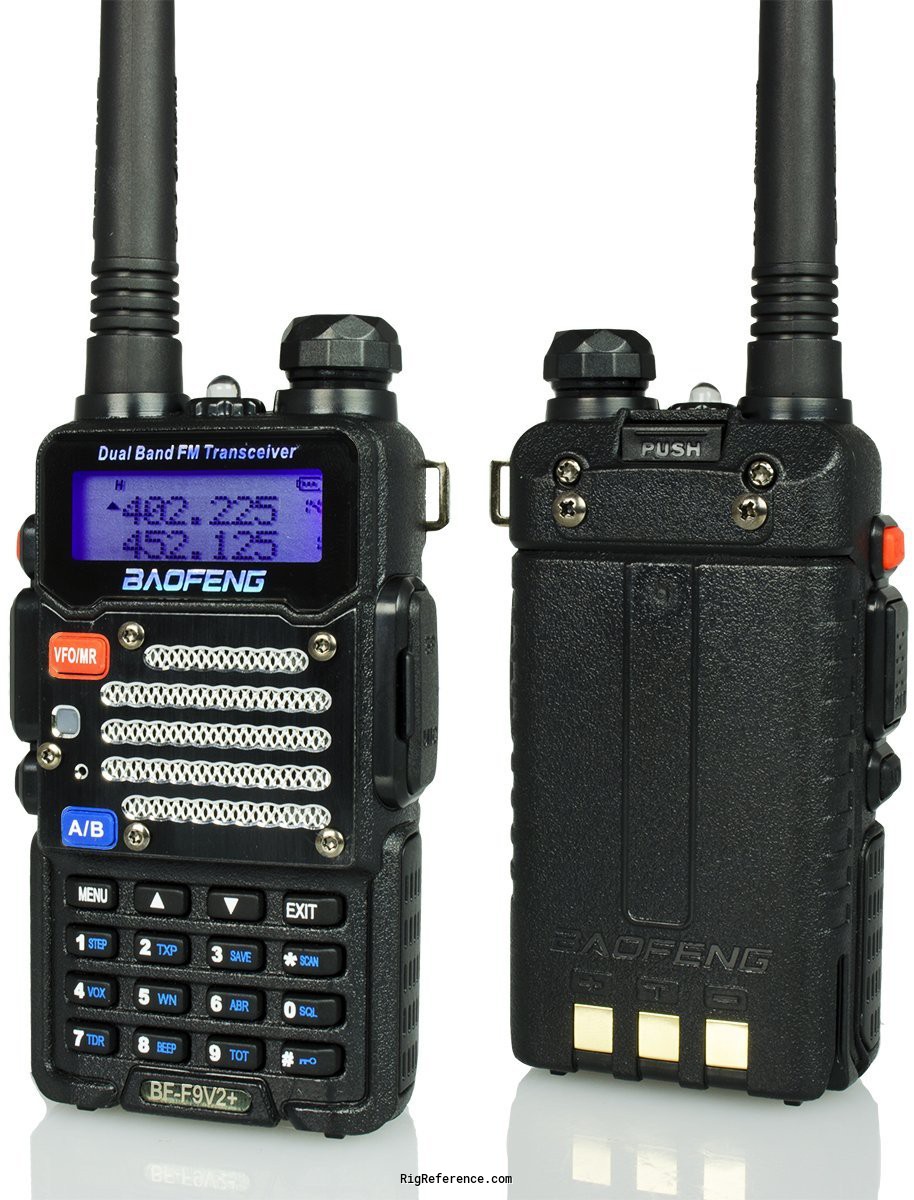

Baofeng BF-F9 V2+ Dual-band FM Transceiver

 (0.0/5)  Add a review   View all reviews (0)   Add to my shack



Login or Register to upload images

Baofeng Radio US's BF-F9 V2+ is the next level of ham radio, improving on the top of the line UV-5R V2+ model with the new addition of Tri-Power functionality: This includes unsurpassed transmission power of 5 watts, as the most impressive Baofeng ever made to date. The BF-F9 V2+ has an expanded frequency range like the UV-82, and a new chipset with noise-reduction features that block out noises caused by signal intensity changes along with tail tone elimination when transmitting or receiving signals between 50Hz-55Hz. The BF-F9 V2+'s tri-color display makes for easy reading on the bright LCD, and this radio can be programmed with or without a PC to work on private repeater systems. The most powerful, versatile Baofeng, it has transmitting power selectable up to 8 watts. It is fully backward compatible with all UV-5R accessories.

Frequency range

RX-range
65-108 / 136-174 / 400-480 MHz
TX-range
136-174 / 400-480 MHz
HAM bands
2m  70cm
Stability
± 2.5 p.p.m.
Tuning steps
2.5 / 5 / 6.25 / 10 / 12.5 / 25 kHz
Filters
-

Receiver

Modulations
FM   N-FM
Sensitivity
≤ 0.2 µV (12 dB SINAD)
Selectivity
-
Receiver system
-
IF-frequencies
-
Image rejection
65/60 dB
Audio output
700 mW

Transmitter

Modulations
FM   N-FM
RF-Output
8 W max

Connections

Antenna
SMA
Impedance
50Ω

Electrical

Power requirements
7.4 V DC Li-ion, 1800 mAh
Current drain RX
380 mA max, ≤ 75 mA in standby
TX
1.4 A max

Physical

Dimensions (w×h×d)
102 × 51 × 12 mm (4.02 × 2.01 × 0.47 in) excl. antenna
Weight
214 gr (7.6 oz)
Form factor
Handheld
Manufactured
Between 2011 and 201x in China
MPN
BAOFENG-BF-F000009-V2+

Other features

Memories
128 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
LED Flashlight
CTCSS / DCS
DTMF
1750 Hz
VOX
PC programmable
Accessories
-
