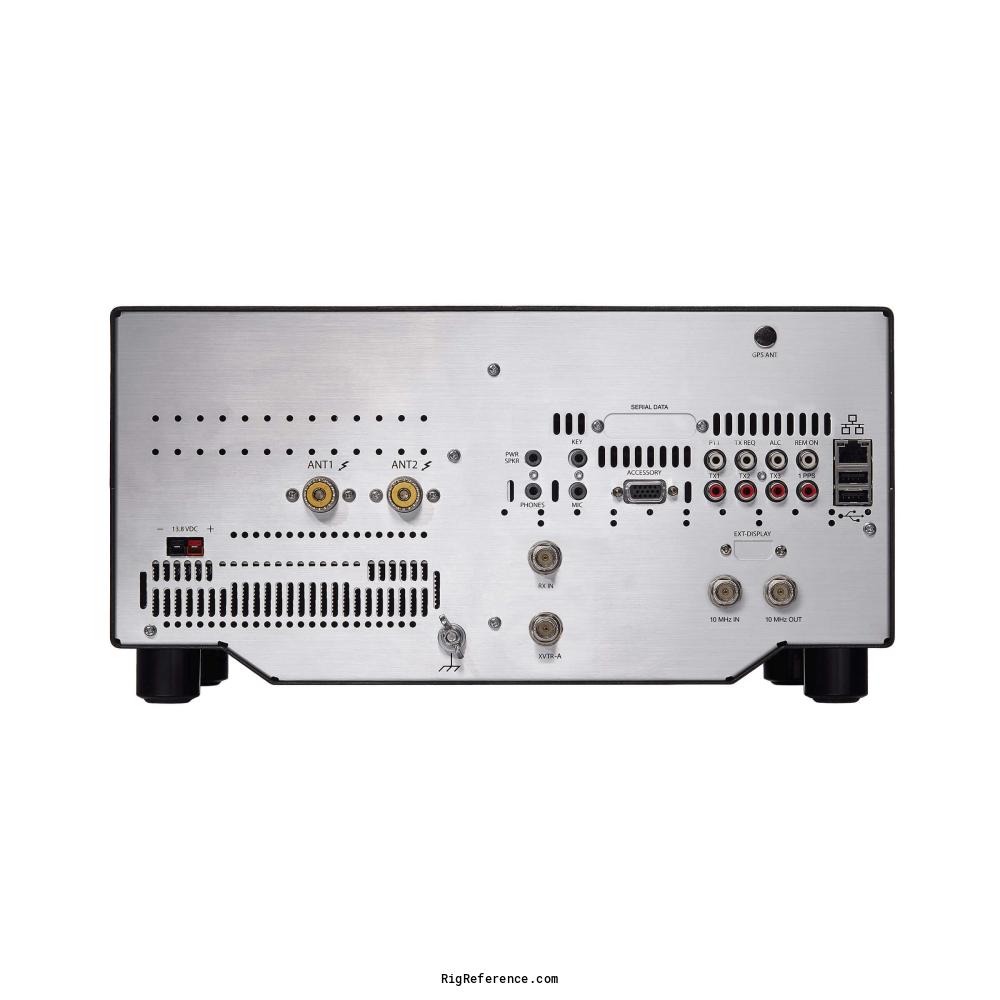

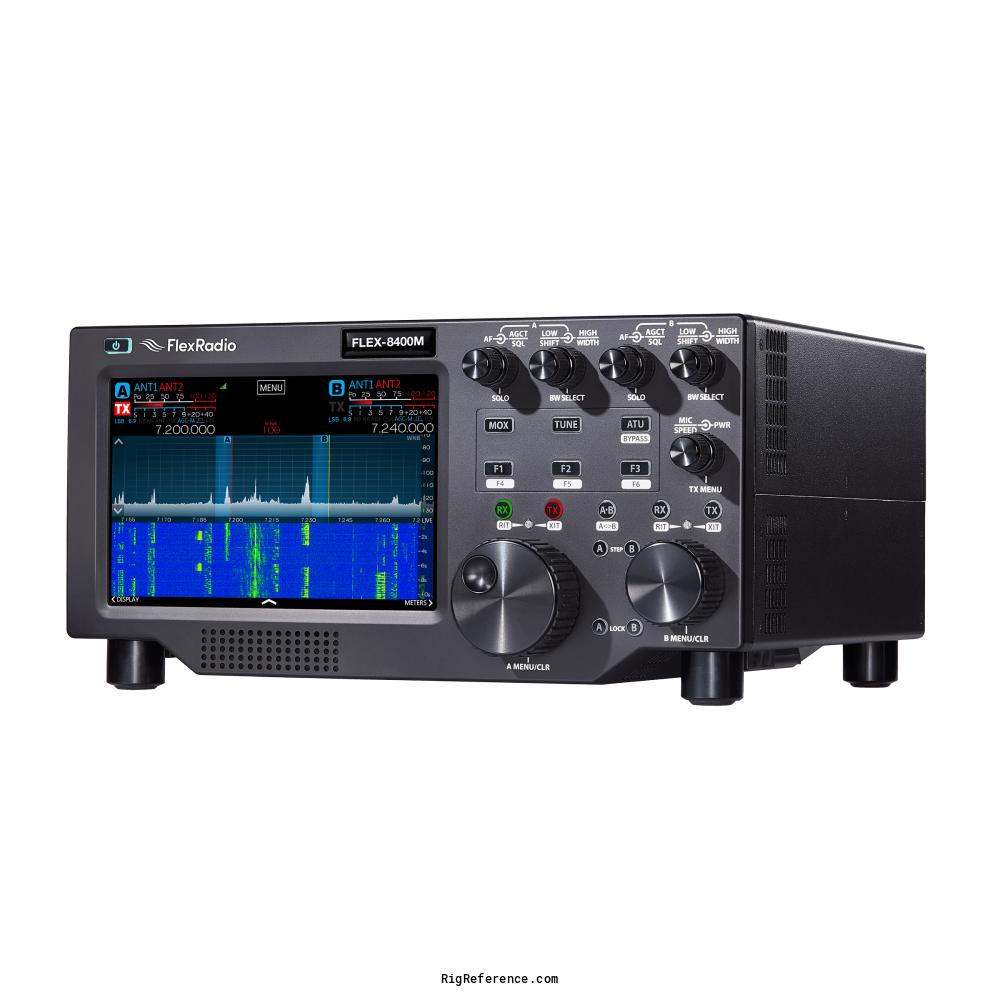

FlexRadio FLEX-8400M

General characteristics

HAM bands

160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  11m (CB)  6m  10m

Frequency stability

(0⁰C – 50⁰C) 0.5 p.p.m. (TCXO)

Tuning steps

1 Hz

Memories

?

Receiver

RX-range

30 kHz – 54 MHz

Modulations

AM   AM-sync   FM   N-FM   CW   USB   LSB   RTTY   Digital (other)   DV

Sensitivity

?

Selectivity

?

Filters

?

Receiver system

SDR, Direct Digital Sampling ADC sampling rate: 122.88 Msps, ADC resolution: 16 bit.

IF-frequencies

?

Image rejection

≥ 100 dB

Audio output

1W diagnostic speaker

Transmitter

TX-range

160-6 m

Modulations

AM   AM-sync   FM   N-FM   CW   USB   LSB   RTTY   Digital (other)   DV

RF-output

160m-6m Transmitter Output: 1-100W (25W AM)

Connections

Antenna

BNC + SO-239

Impedance

50Ω

Other

-

Electrical

Power requirements

13.8 V DC +/- 15% (14 V DC Nominal)

Current drain RX

1.7 A

TX

23 A

Physical

Dimensions (w×h×d)

356 × 171 × 337 mm (14.02 × 6.73 × 13.27 in)

Weight

?

Form factor

Base Station

Manufactured

Between 2024 and 202x in USA

Other features

Usage

Amateur / Ham radio operators

Features + options

Optional Integrated Automatic Antenna Tuner Range: 3:1 SWR
Optional Continuous MARS/CAP Coverage with Extended Transmit Filter

Accessories

-

RigReference ID

6629

MPN

FLEXRADIO-FLEX-008400M

Manuals, diagrams and brochures

No documents available for this particular model.



Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used FlexRadio FLEX-8400M. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the FlexRadio FLEX-8400M in Good condition is around:

• USD 2,744

Price History Chart

These estimates are based on the following prices:
