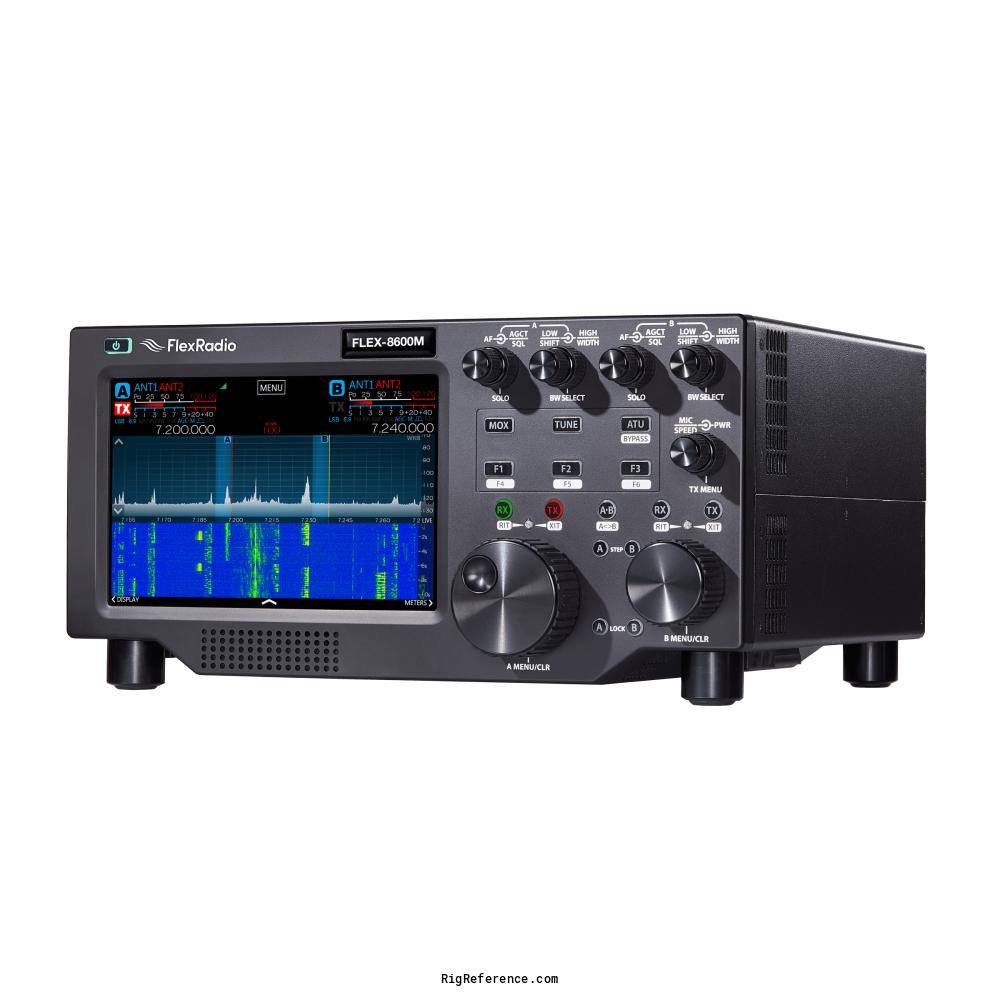

The FLEX-8600M integrates all FlexRadio FLEX-8600 capabilities with a stunning 8-inch 1920×1200 IPS WUXGA touchscreen display and ergonomic controls to deliver a high-performance Software Defined Radio (SDR) with a traditional radio interface. It delivers unmatched band awareness from an integrated display while providing an external connection to monitor compatible 1900×1200 resolution on a monitor for maximum spectral visibility. Influenced by top contest/DX operators,the FLEX-8600M’s symmetrical, dual VFO controls are strategically placed to provide maximum productivity for chasing rare DX, winning contests, digital mode fun, or even casual operation. It’s all self-contained so just plug it in and operate – no PC, network or learning curve required. An antenna tuner is included.
General characteristics
- HAM bands
- 160m 80m 60m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 11m (CB) 6m 10m
- Frequency stability
- (0⁰C – 50⁰C) 0.5 p.p.m. (TCXO)
- Tuning steps
- 1 Hz
- Memories
- ?
Receiver
- RX-range
- 30 kHz – 54 MHz
- Modulations
- AM AM-sync FM N-FM CW USB LSB RTTY Digital (other) DV
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- SDR, Direct Sampling SDR 245.76Msps – 16 bit
- IF-frequencies
- ?
- Image rejection
- ≥ 100 dB
- Audio output
- 1W diagnostic speaker
Transmitter
- TX-range
- 160-6 m
- Modulations
- AM AM-sync FM N-FM CW USB LSB RTTY Digital (other) DV
- RF-output
- 160m-6m Transmitter Output: 1-100W (25W AM)

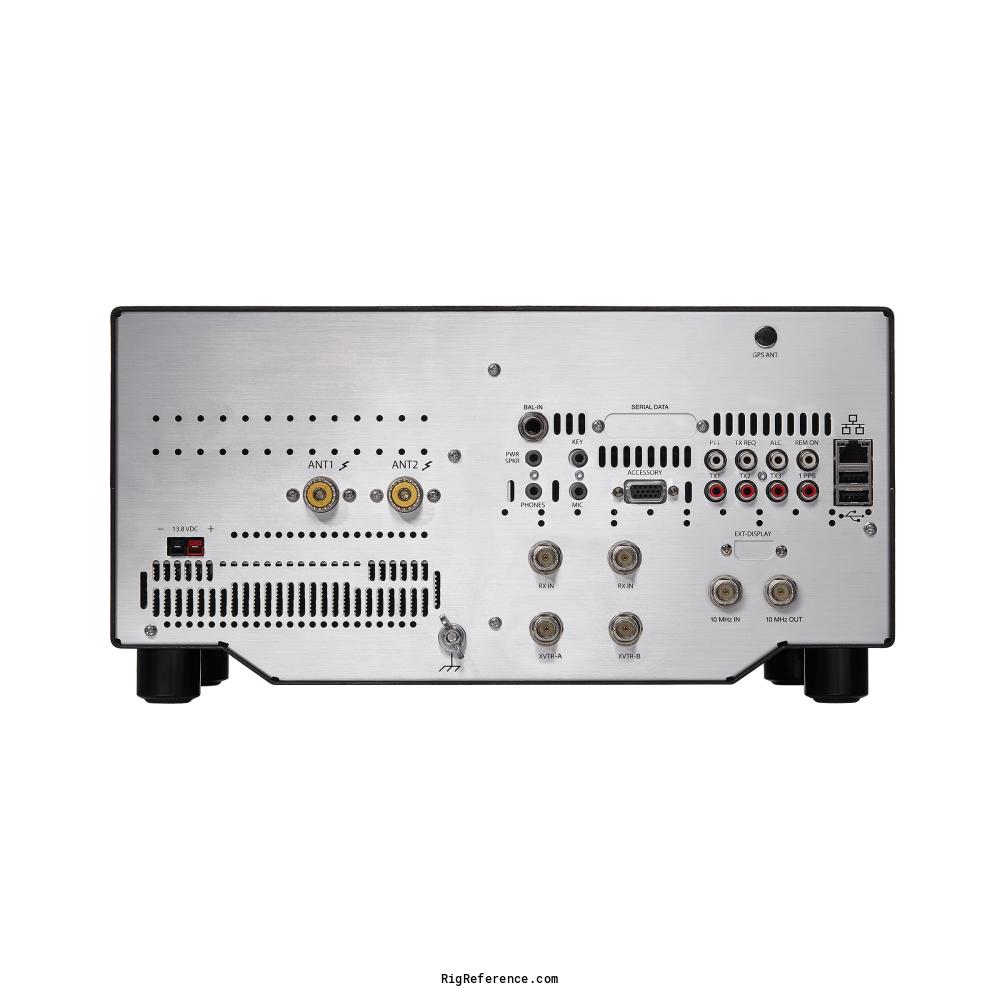

Connections
- Antenna
- BNC + SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8 V DC +/- 15% (14 V DC Nominal)
- Current drain RX
- 1.7 A
- TX
- 23 A
Physical
- Dimensions (w×h×d)
- 356 × 171 × 337 mm (14.02 × 6.73 × 13.27 in)
- Weight
- ?
- Form factor
- Base Station
- Manufactured
- Between 2024 and 202x in USA
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Optional Integrated Automatic Antenna Tuner Range: 3:1 SWR
Optional Continuous MARS/CAP Coverage with Extended Transmit Filter - Accessories
- -
- RigReference ID
- 6631
- MPN
- FLEXRADIO-FLEX-008600M
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used FlexRadio FLEX-8600M. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the FlexRadio FLEX-8600M in Good condition is around:
- USD 4,435
These estimates are based on the following prices:
