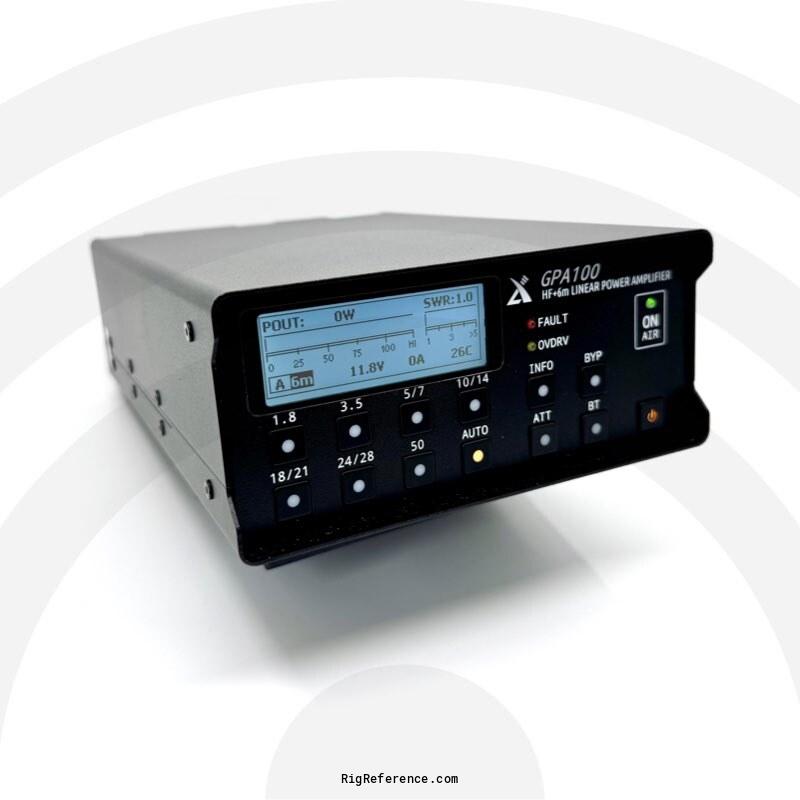

Xiegu GPA100

General characteristics

HAM bands

160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  6m  10m

Frequency stability

?

Tuning steps

?

Memories

?

Transmitter

TX-range

1.8-54 MHz (160-6 m amateur bands)

Modulations

All mode

RF-output

HF: 100 W (±1 dB), 50-54 MHz: 80 W (±1 dB)

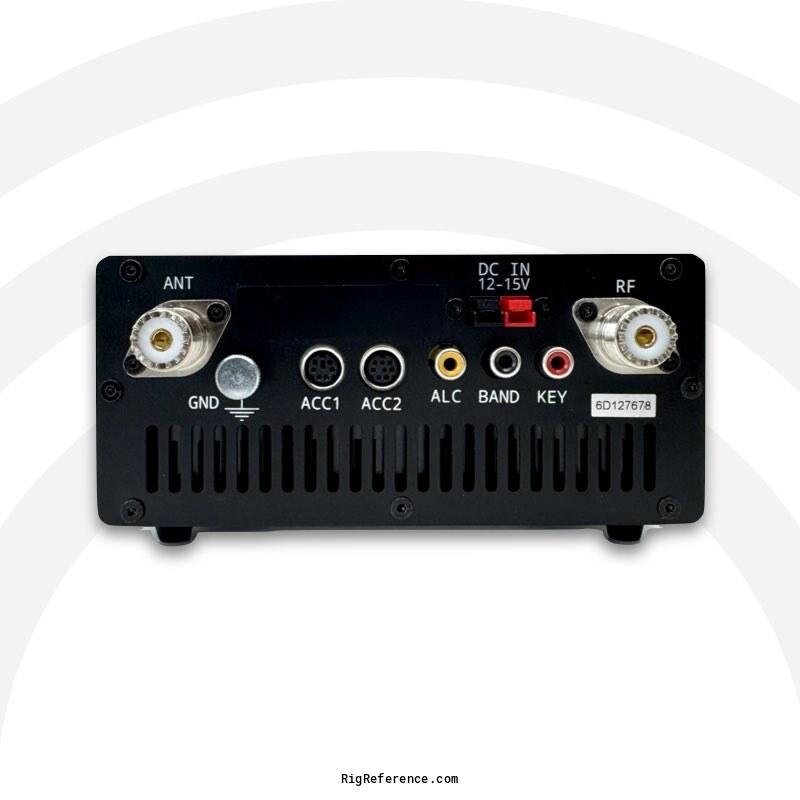

Connections

Antenna

SO-239

Impedance

50Ω

Other

-

Electrical

Power requirements

12.0-15.0 V DC

Current drain RX

300 mA max (standby)

TX

25 A max

Physical

Dimensions (w×h×d)

164 × 82 × 245 mm (6.46 × 3.23 × 9.65 in) Excluding protrusions

Weight

2.60 kg (5.7 lbs)

Form factor

?

Manufactured

Between 2025 and 20xx in China

Other features

Usage

Amateur / Ham radio operators

Features + options

Gain: 14 dB (HF), 12 dB (6 m)
Manual or automatic band switching (band data via cable or Bluetooth)

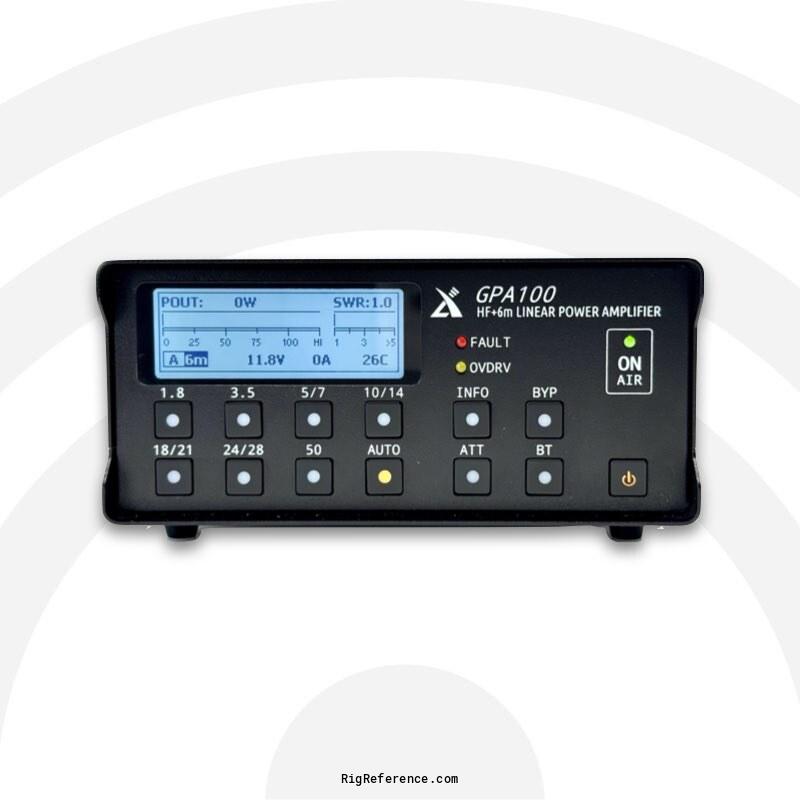

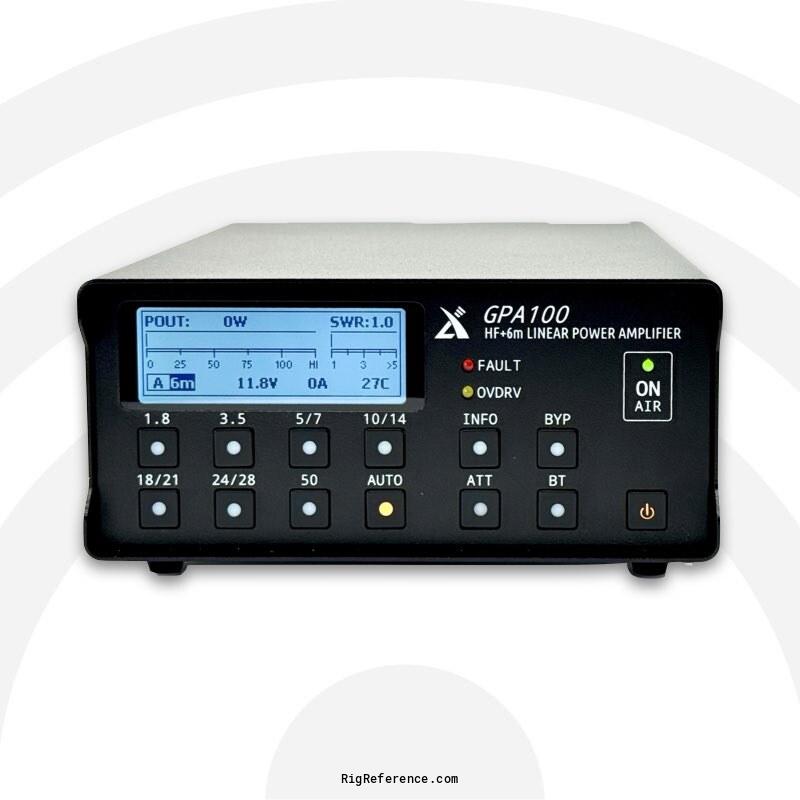

LCD status display (power, SWR, band, voltage, current, temperature)
Active fan cooling
Protection: high SWR, over-current, over-voltage, over-temperature
No internal antenna tuner

Accessories

-

RigReference ID

6683

MPN

XIEGU-GPA000100

Manuals, diagrams and brochures

No manuals yet for the Xiegu GPA100. Have a PDF of the user manual, service manual, or schematic? Upload it and help the next operator.



Upload relevant documents

Reviews

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Xiegu GPA100. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on similar Linear Amplifier equipment, the estimated value of the Xiegu GPA100 is around:

• USD 248 ~ USD 460

This estimate is based on similar equipment and may not reflect the exact value of this model.
