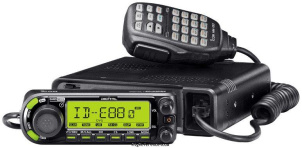

ICOM ID-E880

General characteristics

HAM bands

2m  70cm

Frequency stability

2.5 p.p.m. (10 °C to +60 °C)

Tuning steps

5 / 6.25 / 8.33 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 / 100 / 200 kHz

Memories

1052 channels in 26 bank(s)

Receiver

RX-range

118-174 / 230-550 / 810-1000 MHz

Modulations

AM   FM   N-FM   DV

Sensitivity

FM (at 12dB SINAD)
118.000–136.995MHz 0.16μV
137.000–173.995MHz 0.16μV
230.000–259.995MHz 0.56μV
260.000–299.995MHz 0.32μV
300.000–349.995MHz 0.22μV
350.000–399.995MHz 0.22μV
400.000–499.995MHz 0.16μV
500.000–549.995MHz 0.16μV
810.000–879.990MHz 0.45μV
880.000–999.990MHz 0.45μV

AM (at 10dB S/N, 30% Mod.)
118.000–136.995MHz 0.5μV
137.000–173.995MHz 0.5μV
230.000–259.995MHz 1.8μV
260.000–299.995MHz 1.0μV
300.000–349.995MHz 0.79μV
350.000–399.995MHz 0.63μV
400.000–499.995MHz 0.56μV
500.000–549.995MHz 0.56μV

DV (D-Star) (at BER 1%, 4.8kbps)
VHF (Ham band) Less than 0.35μV
UHF (Ham band) Less than 0.35μV

Selectivity

Wide: > 10 kHz/6 dB, < 30 kHz/60 dB
Narrow: > 6 kHz/6 dB, < 20 kHz/60 dB
DV: > 50 dB

Filters

?

Receiver system

Double conversion superheterodyne

IF-frequencies

1st: 46.35 MHz
2nd: 450 kHz

Image rejection

60 dB

Audio output

More than 2.0 W at 10% distortion with an 8 ?

Transmitter

TX-range

144-146 / 430-440 MHz

Modulations

FM   N-FM   DV

RF-output

50 / 15 / 5 W (approx.)

Connections

Antenna

SO-239

Impedance

50 Ω

Other

-

Electrical

Power requirements

13.8V DC ±15%

Current drain RX

1.2 A max

TX

12.5 A max

Physical

Dimensions (w×h×d)

150 × 40 × 200 mm (5.91 × 1.57 × 7.87 in)

Weight

1.30 kg (2.9 lbs) without microphone, cable and bracket

Form factor

Mobile

Manufactured

Between 2009 and 20xx in Japan

Other features

Usage

Amateur / Ham radio operators

Features + options

Alpha tags
GPS connectivity
Detachable front panel
USB programmable

Accessories

-

RigReference ID

5161

MPN

ICOM-ID-E000880
