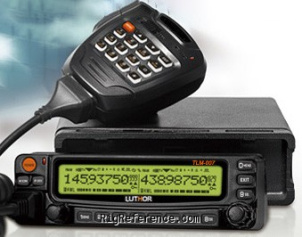

Luthor TLM-007

General characteristics

HAM bands

2m  70cm

Frequency stability

± 2.5 p.p.m.

Tuning steps

5 / 6.25 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 / 100 kHz

Memories

999 channels in 1 bank(s)

Receiver

RX-range

0.15-30 / 65-220 / 400-520 MHz

Modulations

AM   FM   N-FM

Sensitivity

< 0.2µV (12dB SINAD)

Selectivity

12.5 kHz < -60 dB
25 kHz < -70 dB

Filters

?

Receiver system

Double conversion superheterodyne

IF-frequencies

?

Image rejection

?

Audio output

?

Transmitter

TX-range

2 m / 70 cm

Modulations

FM   N-FM

RF-output

5-50 W

Connections

Antenna

-

Impedance

50Ω

Other

-

Electrical

Power requirements

13.8 V DC ±15%

Current drain RX

500 mA

TX

9 A max

Physical

Dimensions (w×h×d)

?

Weight

?

Form factor

Mobile

Manufactured

Between 2010 and 201x in China

Other features

Usage

Amateur / Ham radio operators

Features + options

DTMF-mic
Detachable front panel
Called ID
Twin RX
Cross-band repeater

Accessories

-

RigReference ID

5565

MPN

LUTHOR-TLM-000007
