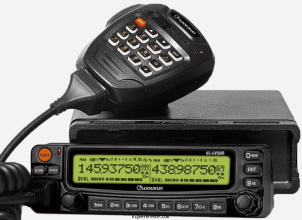

The KG-UV920R is Wouxon's first dual band rig, operating both 2 meters and 70 cm (440 MHz). Power output is selectable in 3 steps (2m: 5/25/50W, 70cm: 5/20/40W) and modulation can be switched between narrow-FM and regular-FM. The receiver covers the entire HF band, 65-220 MHz and 400-520 MHz and supports AM. A detachable front panel and DTMF-mic come standard.
Also sold as the Luthor TLM-007.
General characteristics
- HAM bands
- 2m 70cm
- Frequency stability
- ± 2.5 p.p.m.
- Tuning steps
- 5 / 6.25 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 / 100 kHz
- Memories
- 999 channels in 1 bank(s)
Receiver
- RX-range
- FM: 88-108 / 134-174 / 200-260 / 350-520 MHz
AM: 118-134 MHz - Modulations
- AM FM N-FM
- Sensitivity
- < 0.2µV (12dB SINAD)
- Selectivity
- 12.5 kHz < -60 dB
25 kHz < -70 dB - Filters
- ?
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 2 m / 70 cm
- Modulations
- FM N-FM
- RF-output
- 5-50 W
Connections
- Antenna
- -
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8 V DC ±15%
- Current drain RX
- 500 mA
- TX
- 9 A max
Physical
- Dimensions (w×h×d)
- ?
- Weight
- ?
- Form factor
- Mobile
- Manufactured
- Between 2010 and 201x in China
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- DTMF-mic
Detachable front panel
Called ID
Twin RX
Cross-band repeater - Accessories
- -
- RigReference ID
- 5445
- MPN
- WOUXUN-KG-UV000920R
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Wouxun KG-UV920R. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Wouxun KG-UV920R is around:
- AUD 79.00
These estimates are based on the following prices:
