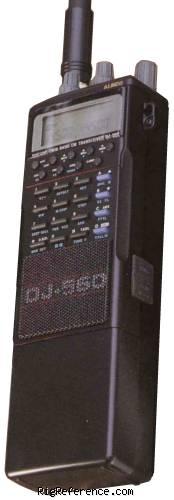

The Alinco DJ-560E is a handheld VHF/UHF transceiver. It covers 144-146 / 430-440 MHz for both transmit and receive. The radio features CTCSS and Twin RX. RF output is selectable between High: 5/5 W (depending on voltage) and Low: ?/? W. It has 1 memory bank with 40 channels. Power requirements are 7.2-12V DC. Current drain during transmit is Max 2.4 A. Dimensions are 169 × 57 × 32 mm. The radio weighs approximately 440 gr.
General characteristics
- HAM bands
- 2m 70cm
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 40 channels in 1 bank(s)
Receiver
- RX-range
- 144-146 / 430-440 MHz
- Modulations
- FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-146 / 430-440 MHz
- Modulations
- FM
- RF-output
- High: 5/5 W (depending on voltage), Low: ?/? W
Connections
- Antenna
- -
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 7.2-12V DC
- Current drain RX
- ?
- TX
- Max 2.4 A
Physical
- Dimensions (w×h×d)
- 57 × 169 × 32 mm (2.24 × 6.65 × 1.26 in)
- Weight
- 440 gr (15.5 oz) approx.
- Form factor
- Handheld
- Manufactured
- Between 199x and 199x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- CTCSS. Twin RX
- Accessories
- -
- RigReference ID
- 2256
- MPN
- ALINCO-DJ-000560E
