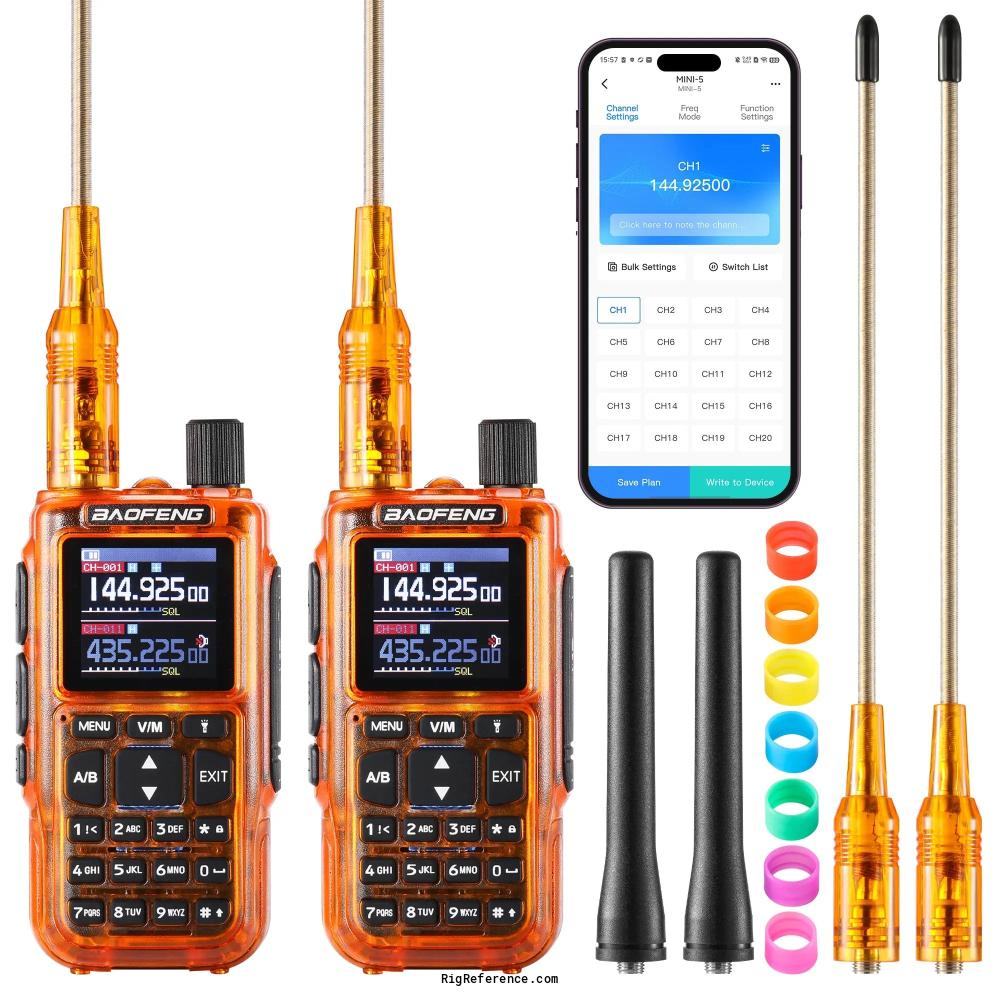

Baofeng MINI-5
Amateur Handheld Transceiver
Add a review (+10 rep) Own this rig? Add it to your shack
Transmit range: the description gives 144-148 / 420-450 MHz; the specification table (US) lists 136-174 / 400-480 MHz.
In CHIRP, select UV-5R Mini.
A GMRS version, the MINI-5G, is sold separately.
General characteristics
- HAM bands
- 2m 70cm
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 999 channels in bank(s)
Receiver
- RX-range
- FM broadcast 76-108 MHz, airband 108-136 MHz
136-174 / 350-390 / 400-520 MHz
NOAA weather
EU version: FM broadcast, airband, VHF & UHF - Modulations
- AM FM N-FM W-FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-148 / 420-450 MHz
- Modulations
- FM N-FM
- RF-output
- 5 / 2 W
Connections
- Antenna
- -
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 7.4 V DC ±10%, Li-ion battery 2200 mAh USB-C charging
- Current drain RX
- ?
- TX
- ≤1600 mA
Physical
- Dimensions (w×h×d)
- 52 × 108 × 37 mm (2.05 × 4.25 × 1.46 in) Without antenna
- Weight
- 212 gr (7.5 oz) Including battery
- Form factor
- Handheld
- Manufactured
- Between 2026 and 20xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Compact dual band 2 m / 70 cm, 5/2 W
1.44" colour TFT display, full keypad
Dual display, dual watch, dual PTT
999 channels
Bluetooth app programming (Ola Radio)
Frequency search / one-key frequency copy (frequency, CTCSS/DCS)
TX/RX frequency reverse
Assignable side key, VOX, flashlight, SOS
Airband and NOAA weather receive
2-pin Kenwood accessory jack
USB-C charging - Accessories
- -
- RigReference ID
- 6847
- MPN
- BAOFENG-MINI-000005
