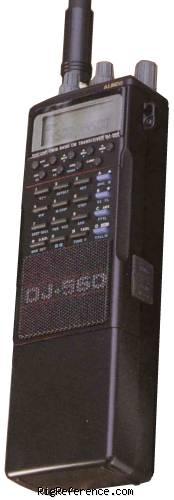

The Alinco DJ-560T is a handheld VHF/UHF transceiver. It covers 144-148 / 440-450 MHz for both receive and transmit. The RF output is High: 5/5 W (depending on voltage), Low: ?/? W. It features CTCSS and Twin RX. Memory capacity includes 1 bank with 40 channels. It requires 7.2-12V DC power and has a maximum current drain of 2.4 A during transmit. The dimensions are 169 × 57 × 32 mm. It weighs approximately 440 gr.
General characteristics
- HAM bands
- 2m 70cm
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 40 channels in 1 bank(s)
Receiver
- RX-range
- 144-148 / 440-450 MHz
- Modulations
- FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-148 / 440-450 MHz
- Modulations
- FM
- RF-output
- High: 5/5 W (depending on voltage), Low: ?/? W
Connections
- Antenna
- -
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 7.2-12V DC
- Current drain RX
- ?
- TX
- Max 2.4 A
Physical
- Dimensions (w×h×d)
- 57 × 169 × 32 mm (2.24 × 6.65 × 1.26 in)
- Weight
- 440 gr (15.5 oz) approx.
- Form factor
- Handheld
- Manufactured
- Between 199x and 199x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- CTCSS. Twin RX
- Accessories
- -
- RigReference ID
- 2257
- MPN
- ALINCO-DJ-000560T
Manuals, diagrams and brochures
- Alinco DJ-560 Instruction manual PDF - Unknown size, submitted by RigReference
- Alinco DJ-560T/E Service manual PDF - Unknown size, submitted by RigReference
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Alinco DJ-560T. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Alinco DJ-560T in Good condition is around:
- USD 376
These estimates are based on the following prices:
