Alinco DR-430

Mobile UHF Transceiver

Specs Manuals (1) Reviews (0) Prices (0) Compare

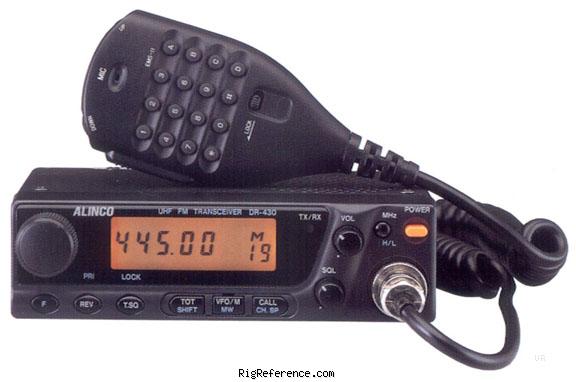

The Alinco DR-430 is a Mobile UHF Transceiver. It covers 430-440 MHz (Europe) / 440-450 MHz (USA) for both transmit and receive. The RF output power is selectable between High: 50 W and Low: 5 W. The DR-430 requires 13.8V DC power. Dimensions are 40 × 140 × 154 mm. Current drain in receive mode is < 800 mA (squelched) and 3.5-10.5 A in transmit mode. The transceiver weighs 860 gr.

General characteristics

HAM bands: 70cm
Frequency stability: ?
Tuning steps: ?
Memories: ?

Receiver

RX-range: 430-440 MHz (Europe)
440-450 MHz (USA)
Modulations: FM
Sensitivity: -16 dBu for 12 dB SINAD
Selectivity: More than 6 kHz (-6 dB), Less than 15 kHz (-60 dB)
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 430-440 MHz (Europe)
440-450 MHz (USA)
Modulations: FM
RF-output: High: 50 W, Low: 5 W

Connections

Antenna: -
Impedance: 50 Ω
Other: -

Electrical

Power requirements: 13.8V DC
Current drain RX: < 800 mA (squelched)
TX: 3.5-10.5 A

Physical

Dimensions (w×h×d): 140 × 40 × 154 mm (5.51 × 1.57 × 6.06 in)
Weight: 860 gr (1.9 lbs)
Form factor: Mobile
Manufactured: Between 19xx and 19xx

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 2323
MPN: ALINCO-DR-000430

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: Alinco DR-130/330/430 Instruction manual PDF - Unknown size, submitted by RigReference

: Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Alinco DR-430. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on similar Transceiver equipment, the estimated value of the Alinco DR-430 is around:

USD 210 ~ USD 390

This estimate is based on similar equipment and may not reflect the exact value of this model.

These estimates are based on the following prices:
