General characteristics

HAM bands
?
Frequency stability
?
Tuning steps
?
Memories
?

Receiver

RX-range
15-80 m
Modulations
CW
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

TX-range
15-80 m
Modulations
CW
RF-output
2.5 W

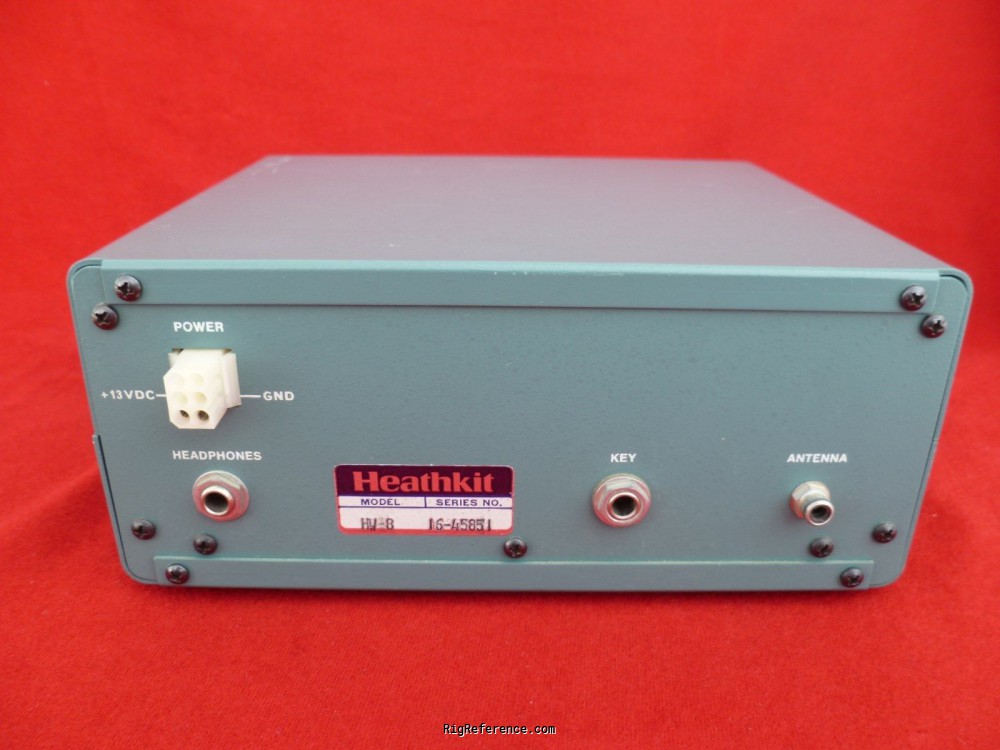

Connections

Antenna
-
Impedance
50 Ω
Other
-

Electrical

Power requirements
13.8V DC
Current drain RX
?
TX
?

Physical

Dimensions (w×h×d)
?
Weight
?
Form factor
Unknown
Manufactured
Between 1976 and 1983 in USA

Other features

Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
RigReference ID
2930
MPN
HEATHKIT-HW-000008

Manuals, diagrams and brochures

Heathkit HW-8 KIT Instruction Manual PDF - 3.28 MB, submitted by KV4NK
HW-8 Schematic A3 PDF - 89.4 kB, submitted by KV4NK

Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Heathkit HW-8. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Heathkit HW-8 is around:

  • USD 186.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2014 USD 259.00 Used / Good KV4NK
