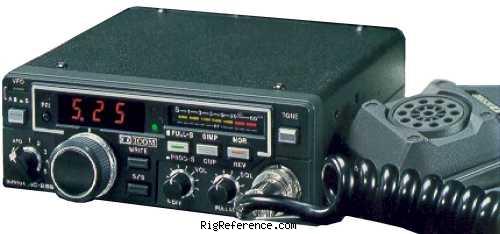

The Icom IC-25H is the same as the ICOM IC-25A, but transmits with 45 watts (instead of 25 watts) and requires 9.5 Amps. It has a large heat sink in the back.

General characteristics

HAM bands
2m
Frequency stability
?
Tuning steps
5 / 15 kHz
Memories
5 channels in 1 bank(s)

Receiver

RX-range
144-146 MHz (Europe)
143.8-148.2 MHz (USA)
Modulations
FM
Sensitivity
Better than 0.6 µV for 20 dB noise quieting
Selectivity
15 kHz (-6 dB) / 30 kHz (-60 dB)
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
> 60 dB
Audio output
Internal speaker

Transmitter

TX-range
144-146 MHz (Europe)
143.8-148.2 MHz (USA)
Modulations
FM
RF-output
2 / 45 W

Connections

Antenna
SO-239
Impedance
50Ω
Other
-

Electrical

Power requirements
13.8 V DC
Current drain RX
600-750 mA
TX
2.7-9.5 A

Physical

Dimensions (w×h×d)
140 × 50 × 222 mm (5.51 × 1.97 × 8.74 in)
Weight
1.90 kg (4.2 lbs)
Form factor
Mobile
Manufactured
Between 1983 and 198x in Japan

Other features

Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
RigReference ID
3020
MPN
ICOM-IC-000025H

Manuals, diagrams and brochures

IC-25H 144MHZ FM Transeiver Instruction Manual PDF - 3.43 MB, submitted by Merle Schnick

Upload relevant documents

Reviews & stories

Rating Title Submitted
IC-25H Still going strong! 6 years ago by kc0bcz

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-25H. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the ICOM IC-25H is around:

  • USD 21.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2016 USD 35.00 Used / Good RigReference
