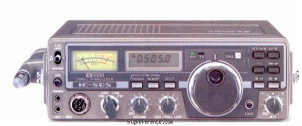

The ICOM IC-505 followed in the footsteps of the popular ICOM IC-502 and ICOM IC-502A.

Frequency range

RX-range
50-54 MHz
TX-range
50-54 MHz
HAM bands
?
Stability
?
Tuning steps
?
Filters
?

Receiver

Modulations
All mode
Sensitivity
?
Selectivity
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

Modulations
All mode
RF-Output
3 W @ 6 VDC, 10 W @ 13.8 VDC

Connections

Antenna
-
Impedance
50 Ω

Electrical

Power requirements
6V DC (4LR20) or 13.8V DC external
Current drain RX
300 mA
TX
Max 2.9 A (10 W)

Physical

Dimensions (w×h×d)
230 × 76 × 189 mm (9.06 × 2.99 × 7.44 in)
Weight
3.20 kg (7.1 lbs) with batteries
Form factor
Handheld
Manufactured
Between 1982 and 198x in Japan
MPN
ICOM-IC-000505

Other features

Memories
?
Usage
Amateur / Ham radio operators
