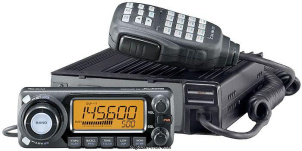

ICOM IC-E208

Mobile VHF/UHF Transceiver

View all reviews (0) Add a review Add to my shack



Login or Register to upload images

Find ICOM IC-E208 rigs and spare parts on eBay Find the ICOM IC-E208 on Amazon
We receive a small fee when you buy through these links, thank you!

Frequency range

RX-range
118-174 / 230-550 / 810-1000 MHz
TX-range
144-146 / 430-440 MHz
HAM bands
?
Stability
?
Tuning steps
?
Filters
?

Receiver

Modulations
AM   FM   N-FM
Sensitivity
0.18 µV (12 dB SINAD)
Selectivity
FM: 12 kHz (-6 dB), 30 kHz (-60 dB)
N-FM: 6 kHz (-6 dB), 20 kHz (-60 dB)
Receiver system
?
IF-frequencies
?
Image rejection
Better than 60 dB
Audio output
?

Transmitter

Modulations
FM   N-FM
RF-Output
High: 55/50 W, Medium: 15/15 W, Low: 5/5 W

Connections

Antenna
SO-239
Impedance
50 Ω

Electrical

Power requirements
13.8V DC +/- 15%
Current drain RX
0.8-1 A
TX
Max 12 A

Physical

Dimensions (w×h×d)
141 × 40 × 185 mm (5.55 × 1.57 × 7.28 in)
Weight
1.20 kg (2.6 lbs)
Form factor
Mobile
Manufactured
Between 2003 and 200x
MPN
ICOM-IC-E000208

Other features

Memories
512 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
CTCSS. 9K6 bd packet ready Multi color display
Accessories
?

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Show other documents.
Find the ICOM IC-E208 user manuals on eBay #ad

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of new a used ICOM IC-E208. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the ICOM IC-E208 is around:

  • EUR 128.00
Year Historic price Condition Submitted by
2010 EUR 259.00 New / Good thiecom.de
