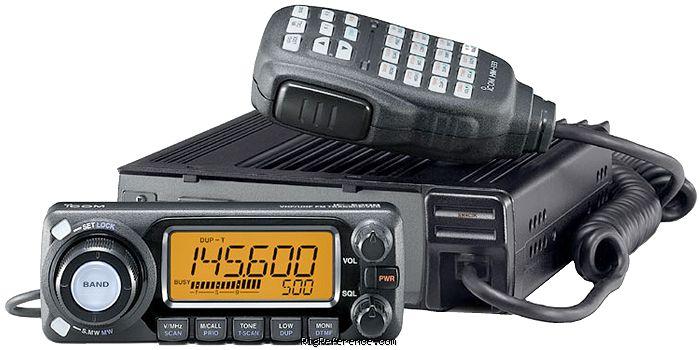

The ICOM IC-E208 is a Mobile VHF/UHF Transceiver. It covers 118-174 / 230-550 / 810-1000 MHz in receive and 144-146 / 430-440 MHz in transmit. The IC-E208 features an image rejection of better than 60 dB. The RF output is High: 55/50 W, Medium: 15/15 W, Low: 5/5 W. It has 1 memory bank with 512 memory channels and requires 13.8V DC +/- 15%. The IC-E208 includes CTCSS, 9K6 bd packet ready, and a multi color display. The transceiver weighs 1.2 kg and draws 0.8-1 A in receive and max 12 A in transmit. Dimensions are 40 × 141 × 185 mm.
General characteristics
- HAM bands
- 2m 70cm
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 512 channels in 1 bank(s)
Receiver
- RX-range
- 118-174 / 230-550 / 810-1000 MHz
- Modulations
- AM FM N-FM
- Sensitivity
- 0.18 µV (12 dB SINAD)
- Selectivity
- FM: 12 kHz (-6 dB), 30 kHz (-60 dB)
N-FM: 6 kHz (-6 dB), 20 kHz (-60 dB) - Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- Better than 60 dB
- Audio output
- ?
Transmitter
- TX-range
- 144-146 / 430-440 MHz
- Modulations
- FM N-FM
- RF-output
- High: 55/50 W, Medium: 15/15 W, Low: 5/5 W
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC +/- 15%
- Current drain RX
- 0.8-1 A
- TX
- Max 12 A
Physical
- Dimensions (w×h×d)
- 141 × 40 × 185 mm (5.55 × 1.57 × 7.28 in)
- Weight
- 1.20 kg (2.6 lbs)
- Form factor
- Mobile
- Manufactured
- Between 2003 and 200x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- CTCSS. 9K6 bd packet ready Multi color display
- Accessories
- -
- RigReference ID
- 3191
- MPN
- ICOM-IC-E000208
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-E208. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the ICOM IC-E208 in Good condition is around:
- EUR 259
These estimates are based on the following prices:
