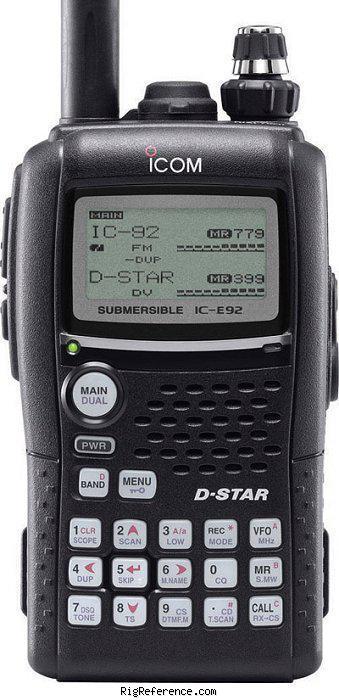

ICOM IC-E92D

Handheld VHF/UHF Transceiver

View all reviews (0) Add a review Add to my shack



Login or Register to upload images

Frequency range

RX-range
0.495-999 MHz
TX-range
144-146 / 430-440 MHz (Europe)
HAM bands
?
Stability
?
Tuning steps
5 / 6.25 / 8.33 / 9 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 / 100 / 125 / 200 kHz
Filters
?

Receiver

Modulations
AM   FM   N-FM   W-FM   DV
Sensitivity
?
Selectivity
?
Receiver system
Triple conversion superheterodyne
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

Modulations
FM   N-FM   DV
RF-Output
High: 5 / 5 W, Mid1: 2.5 / 2.5 W, Mid2: 500/500 mW, Low: 100 / 100 mW

Connections

Antenna
SMA
Impedance
50 Ω

Electrical

Power requirements
7.4V DC (battery pack) 10-16V DC (external)
Current drain RX
?
TX
?

Physical

Dimensions (w×h×d)
58 × 112 × 34 mm (2.28 × 4.41 × 1.34 in)
Weight
300 gr (10.6 oz) with BP-256
Form factor
Handheld
Manufactured
Between 2008 and 200x in Japan
MPN
ICOM-IC-E000092D

Other features

Memories
1200 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
D-Star concept. Alpha tags. CTCSS and DTCS. Submersible (1 meter/30 minutes). Twin RX Optional speaker-mike with built-in GPS receiver (HM-175GPS) for extended D-Star functions
Accessories
?

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Show other documents.
Find the ICOM IC-E92D user manuals on eBay

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-E92D. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the ICOM IC-E92D is around:

  • EUR 198.00 ~ EUR 385.00
Year Historic price Condition Submitted by
2013 EUR 709.00 New / Mint thiecom.de
2013 EUR 469.00 New / Mint thiecom.de
2010 EUR 709.00 New / Good thiecom.de
2010 EUR 469.00 New / Good thiecom.de
2010 EUR 399.00 New / Good thiecom.de
