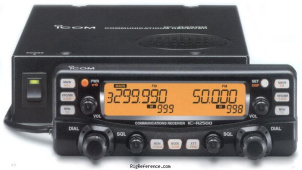

ICOM IC-R2500 Mobile HF/VHF/UHF/SHF Scanner / receiver

 (0.0/5)  Add a story   View all stories (0)   Add to my shack



Login or Register to upload images

Windows software for computer control via USB connector Also sold without the control panel as IC-PCR2500 for computer control on

Frequency range

RX-range
0.01-3300 MHz
TX-range
-
HAM bands
-
Stability
-
Tuning steps
-
Filters
-

Receiver

Modulations
AM   FM   W-FM   CW   SSB
Sensitivity
AM (10 dB S/N)
0.495-1.8 MHz: 25 µV
1.8-50 MHz: 2.5 µV
50-700 MHz: 2 µV
700-1300 MHz: 2.5 µV
FM (12 dB SINAD)
1.8-50 MHz: 0.63 µV
50-700 MHz: 0.5 µV
700-1300 MHz: 0.63 µV
1300-2300 MHz: 5.6 µV
2300-3000 MHz: 18 µV
W-FM (12 dB SINAD)
50-700 MHz: 1.4 µV
700-1300 MHz: 1.8 µV
1300-2300 MHz: 18 µV
2300-3000 MHz: 56 µV
SSB/CW (10 dB S/N)
0.495-1.8 MHz: 5 µV
1.8-50 MHz: 0.5 µV
50-700 MHz: 0.4 µV
700-1300 MHz: 0.5 µV
Selectivity
AM/FM: 6 kHz (-6 dB), 15 kHz (-60 dB)
W-FM: 50 kHz (-6 dB), 230 kHz (-60 dB)
SSB/CW: 2.8 kHz (-6 dB)
Receiver system
-
IF-frequencies
-
Image rejection
-
Audio output
-

Transmitter

Modulations
-
RF-Output
-

Connections

Antenna
BNC
Impedance
50 Ω

Electrical

Power requirements
12V DC +/- 15%
Current drain RX
Max 1.5 A
TX
-

Physical

Dimensions (w×h×d)
146 × 41 × 206 mm (5.75 × 1.61 × 8.11 in) panel: 140×50×28 mm
Weight
1.60 kg (3.5 lbs) Box + Panel
Form factor
Mobile
Manufactured
Between 2006 and 200x
MPN

Other features

Memories
-
Usage
Amateur / Ham radio operators
Features + options
CTCSS/DTCS. Dual watch and diversity reception. DSP (UT-106) and D-Star (UT-118) options
Accessories
-
