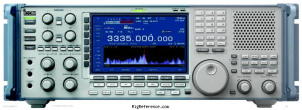

The Icom IC-R9500 clearly raises the bar for professional receivers. Only Icom’s wideband receiver technology can achieve this high specification with 5 kHz to 3335 MHz coverage (less cellular). In HF bands*, it has 110dB wide dynamic range and +40dBm IP3. Even in 144/430(440) MHz and above 2GHz band, it has +5dBm IP3 capability. This high specification means the IC-R9500 allows you to listen to weak signals between strong adjacent signals. For the BPF (Band pass filter) unit, the IC-R9500 uses stable mechanical relays and large inductors instead of switching diodes and small coils which can cause distortion. This combination reduces distortions at the primary stage of signal processing. The R9500 features an Oven Control Crystal Oscillator to achieve impressive ±0.05ppm frequency stability.
The IC-R9500 incorporates two independent, 32-bit floating point DSP units, one for receiver and the other for the spectrum scope. By having two independent DSP units, the radio will respond to operator changes in an instant, as each DSP unit has a dedicated function.
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the current value of the ICOM IC-R9500. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
I do a massive amount of swl activity (also a ham - W2FKN). Features are almost overwhelming. Only have a Comet diploe (CHV-5X) at 25' and an indoor discone. Coupled receiver to an external Acer monitor for improved spectral resolution - changed colors, etc. Phenomenal resolution throughout. Label sites, FM stations, etc. with radio. I can tune out and resolve anything - even cw pile-ups from DX with no effort! Yes the toy cost me $13,000, but is worth every penny. Never saw such packaging, instructions, and overall info. Positively 1st class throughout. This picks up anything that emits a signal - use it daily!
