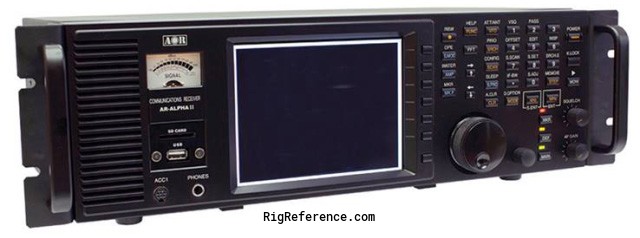

Successor to the AOR AR-Alpha.

General characteristics

HAM bands
160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  11m (CB)  6m  2m  1.25m  70cm  33cm  23cm  10m  4m  2000m  13cm  9cm  6cm
Frequency stability
?
Tuning steps
1 / 10 / 50 / 100 / 500Hz / 1 / 5 / 6.25 / 9 / 10 / 12.5 / 20 / 25 / 30 / 50 / 100 / 500 kHz
Memories
?

Receiver

RX-range
9 kHz - 6000 MHz
Modulations
AM   AM-sync   FM   N-FM   W-FM   CW   USB   LSB   TV   DV
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
Triple-conversion superheterodyne (Zero-IF) DSP from IF to LF
IF-frequencies
?
Image rejection
?
Audio output
?

Connections

Antenna
SO-239 + N-type
Impedance
50Ω
Other
-

Electrical

Power requirements
13.8 V DC
Current drain RX
?
TX
-

Physical

Dimensions (w×h×d)
420 × 130 × 308 mm (16.54 × 5.12 × 12.13 in)
Weight
7.70 kg (17.0 lbs)
Form factor
Base Station
Manufactured
Between 2017 and 201x in Japan

Other features

Usage
Amateur / Ham radio operators
Features + options
Software defined receiver USB 2.0
Waterfall and spectrum display
6" TFT
TV reception (PAL, SECAN, NTSC)
I/Q stand alone recording and playback
10 Digital modes : TETRA,P25(Phase 1+2),DMR, Mototrbo,dPMR,NXDN,D-CR,D-STAR,Alinco,Yaesu.
Automatic detection of digital modes during scan and search.
Up to 2MHz wide digital I/Q output
Accessories
-
RigReference ID
6179
MPN
AOR-AR-ALPHA-II

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used AOR AR-Alpha II. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the AOR AR-Alpha II is around:

  • USD 14435.00 ~ USD 8971.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2020 USD 14499.00 New / Mint GigaParts
2017 USD 9950.00 New / Mint RigReference
