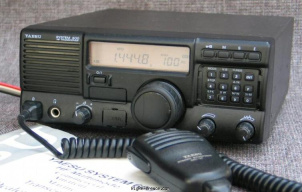

Yaesu FT-600 Mobile Shortwave Transceiver

 (0.0/5)  Add a story   View all stories (0)   Add to my shack



Login or Register to upload images

The Yaesu FT-600 combines the straightforward, practical layout of a commercial radio with the most-often-used features on the front panel. The simplicity of the front panel design includes two Up/Down buttons for frequency, memory, and band stepping, while four knobs control Clarifier, Volume, Squelch, and Tuning. Popular features include Direct Frequency Entry Keypad for quick QSY. 100 Watts Power output — the benchmark for amateur HF operation. And MIL-STD 810 — to meet rugged commercial-grade construction standards.

Front-Facing Speaker
For outdoor operation where noise is present, the front-facing speaker significantly improves the audio readability for the user.

100 Memory Channels
The memories are arranged in banks of 25 channels each, allowing you to sweep through them efficiently when seconds count.

Alpha-Numeric Display
An Alpha-Numeric label may be appended to a memory channel, to aid in channel recognition.

MIL-STD 810 Rating
The FT-600 meets the exacting requirements of the U.S. military's specificaitons for shock and vibration, ensuring you of reliability under difficult operating conditions.

Frequency range

RX-range
50 kHz - 30 MHz
TX-range
10-160 m + WARC
HAM bands
-
Stability
-
Tuning steps
-
Filters
-

Receiver

Modulations
AM   CW   SSB
Sensitivity
-
Selectivity
-
Receiver system
-
IF-frequencies
-
Image rejection
-
Audio output
-

Transmitter

Modulations
AM   CW   SSB
RF-Output
100 W

Connections

Antenna
-
Impedance
50 Ω

Electrical

Power requirements
13.8V DC
Current drain RX
-
TX
Max 20 A

Physical

Dimensions (w×h×d)
-
Weight
-
Form factor
Mobile
Manufactured
Between 199x and 201x
MPN

Other features

Memories
100 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-

Manuals, diagrams and brochures

Yaesu FT-600 Brochure submitted by RigReference

Upload relevant documents

Show other documents.

Stories & reviews

Do you know this rig? Tell us something about it!

What is it worth?

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the current value of the Yaesu FT-600. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's value of the Yaesu FT-600 might be around:

  • EUR 286.00
  • USD 224.00
Price Condition Year User
USD 370.00 Used / Good 2011 DMW
EUR 300.00 Used / Good 2015 lz1uh
