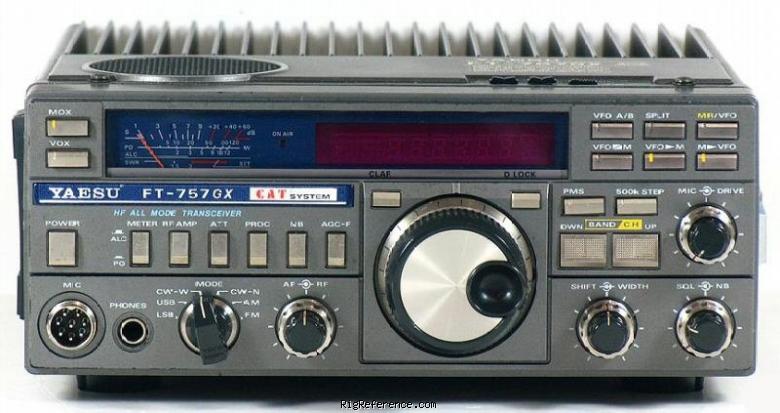

The Yaesu FT-757GX is an affordable HF transceiver covering 160 to 10 meters and has ten memories. The general coverage receiver tunes from 500 kHz to 30 MHz. Power is 100 watts in CW, SSB, FM and 25 watts AM. The FT-757GX features IF Shift, Electronic Keyer, Squelch and Noise Blanker.

The rear panel has numerous input and output jacks. The FT-757GX requires 13.8 VDC at 19 amps. 238x93x238mm 5.2 kg. Supplied with DC cord and MH-1B8 hand mic.

General characteristics

HAM bands
160m  80m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  10m
Frequency stability
Better than ± 10 p.p.m. from 0-40 °C after 15 min. warmup
Tuning steps
10 Hz - 50 kHz
Memories
10 channels in 1 bank(s)

Receiver

RX-range
0.5-30 MHz
Modulations
AM   FM   CW   USB   LSB
Sensitivity
500 kHz-1.5 MHz
SSB / CW(W) / FSK: ≤ 2.0 µV
CW(N): ≤ 1.25 µV
AM: ≤ 8.0 µV
FM: -

1.5-30 MHz
SSB / CW(W) / FSK: ≤ 0.25 µV
CW(N): ≤ 0.16 µV
AM: ≤ 1.0 µV
FM: ≤ 0.6 µV
Selectivity
SSB / CW(W) / FSK
2.7 kHz @ -6 dB, 4.5 kHz @ -60 dB
CW(N)
600 Hz @ -6 dB, 1.3 kHz @ -60 dB
AM
6 kHz @ -6 dB, 18 kHz @ -60 dB
FM
15 kHz @ -6 dB, 30 kHz @ -60 dB
Filters
?
Receiver system
Triple conversion superheterodyne
IF-frequencies
1st: 47.060 MHz
2nd: 8.215 MHz
3rd: 455 kHz
Image rejection
≥ 70 dB
Audio output
3 W @ 10% THD

Transmitter

TX-range
160-10 m + WARC
Modulations
AM   FM   CW   USB   LSB
RF-output
FM/SSB/CW: 100 W, AM: 25 W

Connections

Antenna
SO-239
Impedance
50Ω
Other
-

Electrical

Power requirements
13.5 V DC
Current drain RX
2 A
TX
19 A max

Physical

Dimensions (w×h×d)
238 × 93 × 238 mm (9.37 × 3.66 × 9.37 in) w/o feet and knobs, but w/heatsink
Weight
5.20 kg (11.5 lbs)
Form factor
Base Station
Manufactured
Between 1983 and 198x in Japan

Other features

Usage
Amateur / Ham radio operators
Features + options
IF-Shift
Electronic keyer
Squelch
Noise blanker
Accessories
-
RigReference ID
4339
MPN
YAESU-FT-000757GX

Manuals, diagrams and brochures

Yaesu FT-757GX Operator Manual PDF - Unknown size, submitted by RigReference
Yaesu FT-757GX Technical Supplement PDF - Unknown size, submitted by RigReference

Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FT-757GX. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Yaesu FT-757GX is around:

  • EUR 225.00
  • USD 239.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2014 EUR 275.00 Used / Good pa1gbd
2010 USD 600.00 Used / Good eBay
