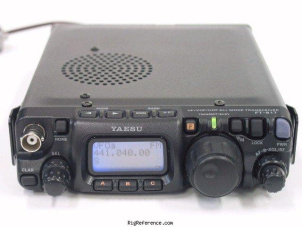

The Yaesu FT-817 is a mobile HF/VHF/UHF transceiver. It covers 0.1-56 / 76-154 / 420-470 MHz (RX) and 10-160 m + WARC / 50-54 / 144-146 / 430-440 MHz (Europe) or 10-160 m + WARC / 50-54 / 144-148 / 440-450 MHz (USA) (TX). It has a frequency stability of 4 p.p.m. from 1 min. to 60 min. after power on and 1 p.p.m./hour at 25°C. Tuning steps are 10 Hz (CW/SSB), 100 Hz (AM/FM). The FT-817 features a double-conversion superheterodyne receiver system with image rejection of 60-70 dB. RF output is 5 W (SSB/CW/FM) and 1.5 W (AM) with 13.8 V external DC, or 2.5 W (SSB/CW/FM) and 0.7 W (AM) with 9.6 V internal DC. Audio output is 1.0 W. It includes 1 memory bank with 200 channels. The FT-817 weighs 1.17 kg and has dimensions of 38 × 135 × 165 mm. Current drain is 250-450 mA (RX) and 2.0 A (TX). Features include CTCSS/DCS, spectrum scope, alpha tags, and 9K6 packet ready.
General characteristics
- HAM bands
- 160m 80m 60m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 6m 2m 70cm 10m
- Frequency stability
- 4 p.p.m. from 1 min. to 60 min. after power on. 25° C: 1 p.p.m./hour
- Tuning steps
- 10 Hz (CW/SSB), 100 Hz (AM/FM)
- Memories
- 200 channels in 1 bank(s)
Receiver
- RX-range
- 0.1-56 / 76-154 / 420-470 MHz
- Modulations
- AM CW USB LSB RTTY
- Sensitivity
- ?
- Selectivity
- SSB/CW: 2.2 kHz/4.5 kHz
AM: 6 kHz/20 kHz
FM: 15 kHz/30 kHz
FM-N: 9 kHz/25 kHz
SSB (option):2.3 kHz/4.7 kHz (-66 dB)
CW (option):500 Hz/2.0 kHz - Filters
- SSB: 400 Hz-2600 Hz (-6 dB)
- Receiver system
- Double-Conversion Superheterodyne
- IF-frequencies
- 1st : 68.33 MHz (SSB/CW/AM/FM);10.7 MHz (WFM)
2nd: 455 kHz - Image rejection
- 60-70 dB
- Audio output
- 1.0 W (8 Ohms, 10% THD or less)
Transmitter
- TX-range
- 10-160 m + WARC / 50-54 / 144-146 / 430-440 MHz (Europe)
10-160 m + WARC / 50-54 / 144-148 / 440-450 MHz (USA) - Modulations
- AM CW USB LSB RTTY
- RF-output
- 5 W (SSB/CW/FM) and 1.5 W (AM) with 13.8 V external DC, 2.5 W (SSB/CW/FM) and 0.7 W (AM) with 9.6 V internal DC
Connections
- Antenna
- BNC + SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 8NiCd/LR6 or 13.8V DC external
- Current drain RX
- 250-450 mA
- TX
- 2.0 A
Physical
- Dimensions (w×h×d)
- 135 × 38 × 165 mm (5.31 × 1.50 × 6.50 in)
- Weight
- 1.17 kg (2.6 lbs)
- Form factor
- Mobile
- Manufactured
- Between 2000 and 200x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- CTCSS/DCS. Spectrum scope. Alpha tags. 9K6 packet ready
- Accessories
- -
- RigReference ID
- 4356
- MPN
- YAESU-FT-000817
Manuals, diagrams and brochures
- Yaesu FT-817 Simplified Operating Guide PDF - Unknown size, submitted by RigReference
- Yaesu FT-817 (Non-ND) Operating Manual PDF - 3.88 MB, submitted by Necromonster
- Yaesu FT-817 Technical Supplement PDF - 17.62 MB, submitted by Necromonster
- Upload relevant documents
Reviews
| Rating | Title | Submitted |
|---|---|---|
| When you need to carry a rig with you which can do mostly everything | 7 years ago by Lukas Thorwald Hey | |
| Excellent Radio | 15 years ago by john.lake10 |
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FT-817. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Yaesu FT-817 in Good condition is around:
- USD 475 ~ USD 525
- EUR 244 ~ EUR 505
These estimates are based on the following prices:
