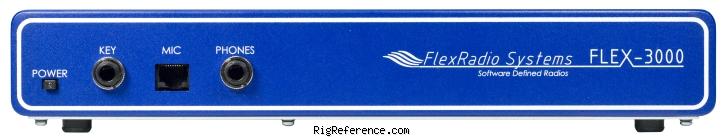

The FLEX-3000 is the high performance mid-range 100 watt all-band, all-mode amateur radio transceiver that achieves receiver performance that rivals all other traditional analog or hybrid DSP transceivers in its price class. The FLEX-3000 is the perfect transceiver for hams just getting started with high performance fully software defined radios.

The supplied open source software, PowerSDR, creates a powerful and flexible solution. The number of memories is limited only by the PC hard disk space.

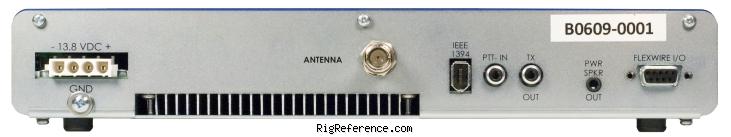

The FLEX-3000 connects to the PC via FireWire.

General characteristics

HAM bands
160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  11m (CB)  6m
Frequency stability
?
Tuning steps
0.001-10.000 kHz
Memories
100000 channels in 1 bank(s)

Receiver

RX-range
0.01-60 MHz
Modulations
AM   N-FM   CW   USB   LSB   DSB   RTTY
Sensitivity
Preamp off: 1.3 µV
Preamp on: 0.3 µV
(-123/-133 dBm in 500 Hz)
Selectivity
CW 500/640 (–6 to 60 dB)
SSB 2.39/2.54 (–6 to 60 dB)
AM 6.6/6.74 (–6 to 60 dB)
Filters
Software defined
Receiver system
Direct conversion, low IF
IF-frequencies
Software selectable from DC to 20 KHz
Image rejection
160-10m: 96dB or better 6m: 71 dB or better
Audio output
Stereo line-out, accepts PC type speakers

Transmitter

TX-range
160-6m
Modulations
AM   N-FM   CW   USB   LSB   DSB   RTTY
RF-output
CW/SSB: 1-100 W PEP, AM: 2-25W

Connections

Antenna
BNC
Impedance
50Ω
Other
-

Electrical

Power requirements
13.8V DC ±10%
Current drain RX
1.5A
TX
25A max

Physical

Dimensions (w×h×d)
311 × 44 × 311 mm (12.24 × 1.73 × 12.24 in)
Weight
4.08 kg (9.0 lbs)
Form factor
Headless
Manufactured
Between 2009 and 20xx

Other features

Usage
Amateur / Ham radio operators
Features + options
SDR (Software Defined Radio)
Accessories
-
RigReference ID
4487
MPN
FLEXRADIO-FLEX-003000

Manuals, diagrams and brochures

Flex-3000 Owners Manual PDF - 3.07 MB, submitted by RigReference

Upload relevant documents

Reviews & stories

Rating Title Submitted
Very best value in ham radio, period 7 years ago by jimpathid

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used FlexRadio FLEX-3000. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the FlexRadio FLEX-3000 is around:

  • USD 543.00 ~ USD 443.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2020 USD 569.00 Used / Good eBay
2020 USD 464.00 Used / Good eBay
2019 USD 640.00 Used / Good eBay
2010 USD 1300.00 Used / Good W0MRM
