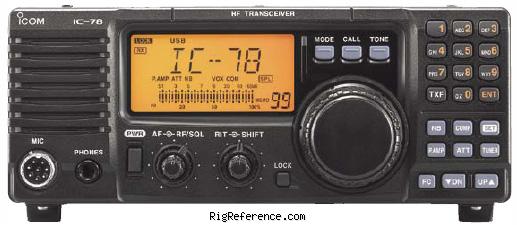

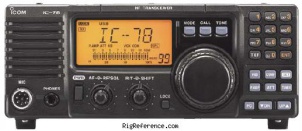

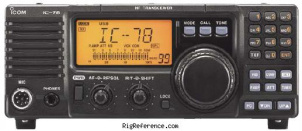

The ICOM IC-78 has a receive range of 30 kHz to 30 MHz. It has a transmit capability from 1.6 to 30 MHz. This radio is very easy to operate with one touch band switching, direct frequency input via keypad and auto tuning steps (senses the rate at which the tuning knob is turned). The receiver section features IF Shift, Adjustable Noise Blanker and RIT. 99 duplex memory channels are available for storing individual transmit and receive frequencies, operating mode, filter setting, as well as 8-character channel names. You can enter channel assignments easily from the 10-key pad. The keypad may also be used for direct frequency entry In addition, an extra 1 call memory is available for storing the most often used, or most important frequency. An independent, one-touch recall switch is available. The transmit section features up to 100 watts of RF output and AF speech compression to increase average audio output. A Morse keyer is built-in. The meter shows output power, ALC and VSWR. The layout and basic operation of this rig is simple. The easy-to-read, large LCD and front firing speaker make this rig ideal for either mobile or base installations. Its one-piece, die-cast aluminum construction, combined with a large heat sink, helps keep internal temperatures down and ensures that operation is stable at high duty cycles. The has rear panel a standard SO-239 antenna jack.
Do you know this rig? Tell us something about it!
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-78. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
These estimates are based on the following prices:
