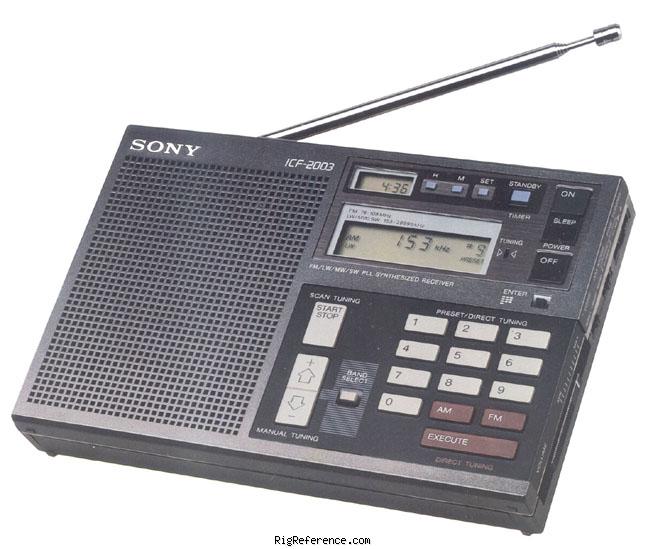

Sony ICF-2003 Handheld HF/VHF Receiver

 (0.0/5)  Add a story   View all stories (0)   Add to my shack



The Sony ICF-2003 is a compact, microprocessor-controlled, dual conversion, frequency synthesized general coverage portable receiver. Direct access tuning is provided along with a multifunction LCD digital readout for unsurpassed convenience and accuracy (5 kHz step on shortwave). Just press the numbered keys to match the frequency you want to hear. Manual and automatic scan tuning are also provided. Ten memories are provided for your favorite stations. The ICF-2003 tunes from 150 to 29995 kHz for solid coverage of LW, MW and shortwave. Single Sideband (SSB) reception is supported. A record output jack is included for taping off the air. Advanced features include: LED tune indicator, keypad lock, 12/24 hour digital quartz clock with timer, Local-DX sensitivity switch, 9/10 kHz MW tuning switch, tone switch and external antenna jack. Supplied accessories include: BP-25 external battery case (4 x C), carry case, wire antenna interface adapter, earphones and Sony Wave Handbook.

Frequency range

RX-range
0.15-30 / 76-108 MHz
TX-range
-
HAM bands
-
Stability
-
Tuning steps
5 kHz
Filters
-

Receiver

Modulations
AM   W-FM   CW   SSB
Sensitivity
-
Selectivity
-
Receiver system
Double conversion superheterodyne
IF-frequencies
-
Image rejection
-
Audio output
-

Transmitter

Modulations
-
RF-Output
-

Connections

Antenna
Built-in ferrite bar + Built-in telescopic
Impedance
-

Electrical

Power requirements
6V DC or 6×AA cells
Current drain RX
-
TX
-

Physical

Dimensions (w×h×d)
181 × 118 × 32 mm (7.13 × 4.65 × 1.26 in)
Weight
879 gr (1.9 lbs)
Form factor
Handheld
Manufactured
Between 198x and 198x in Japan
MPN

Other features

Memories
10 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-

Manuals, diagrams and brochures

No documents available for this particular model.
